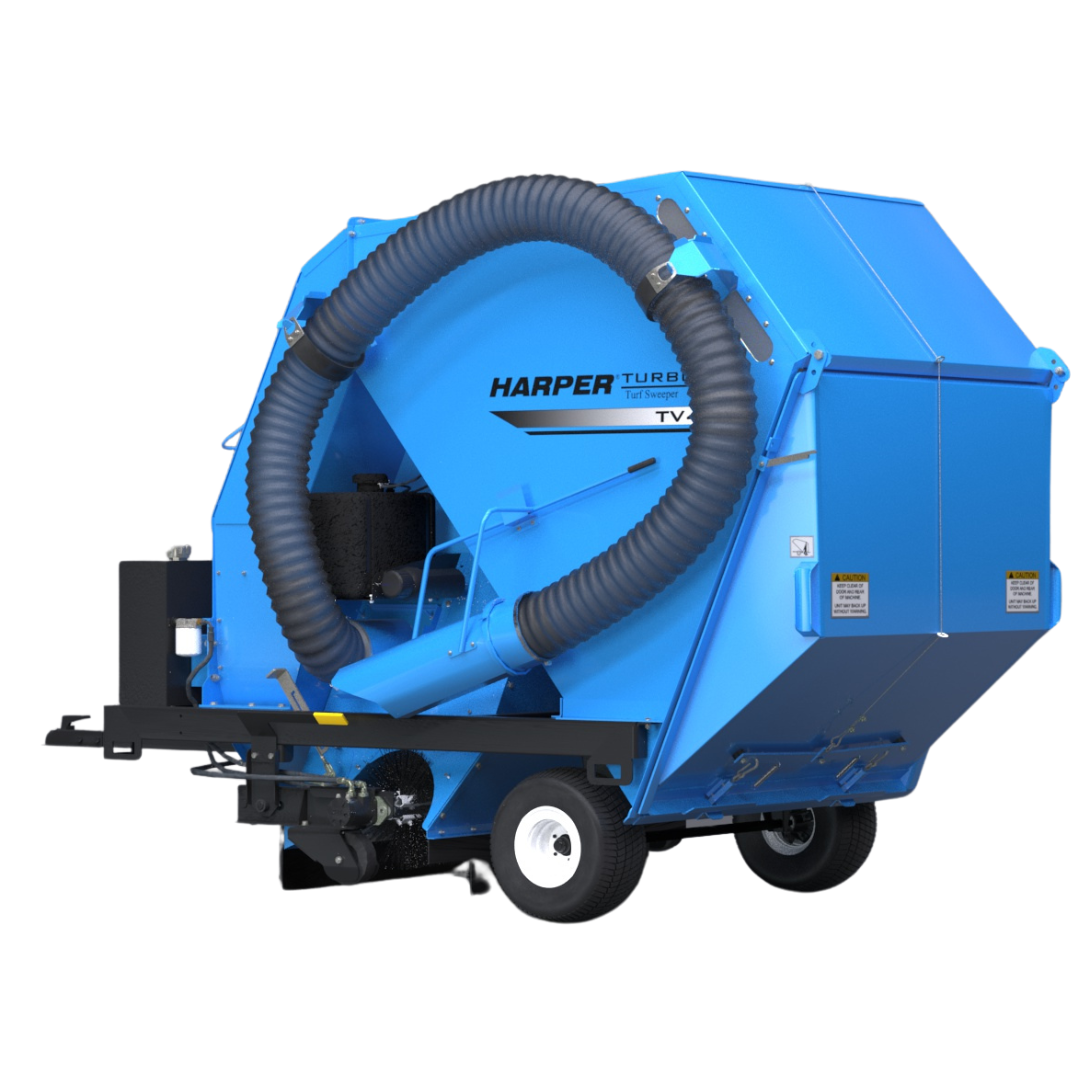

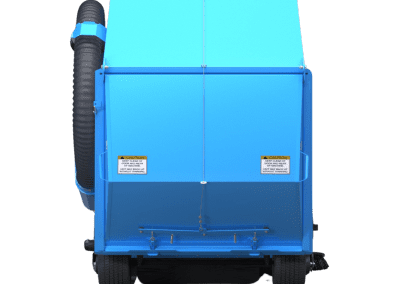

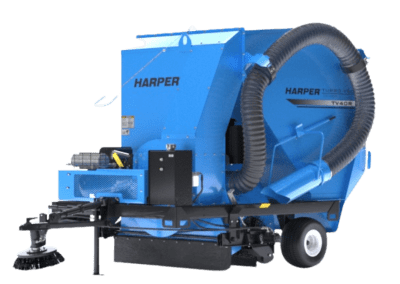

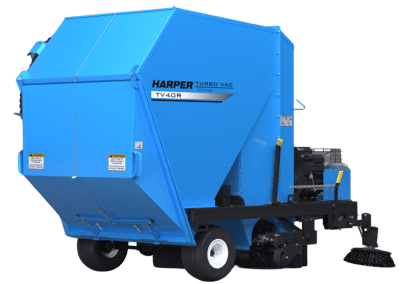

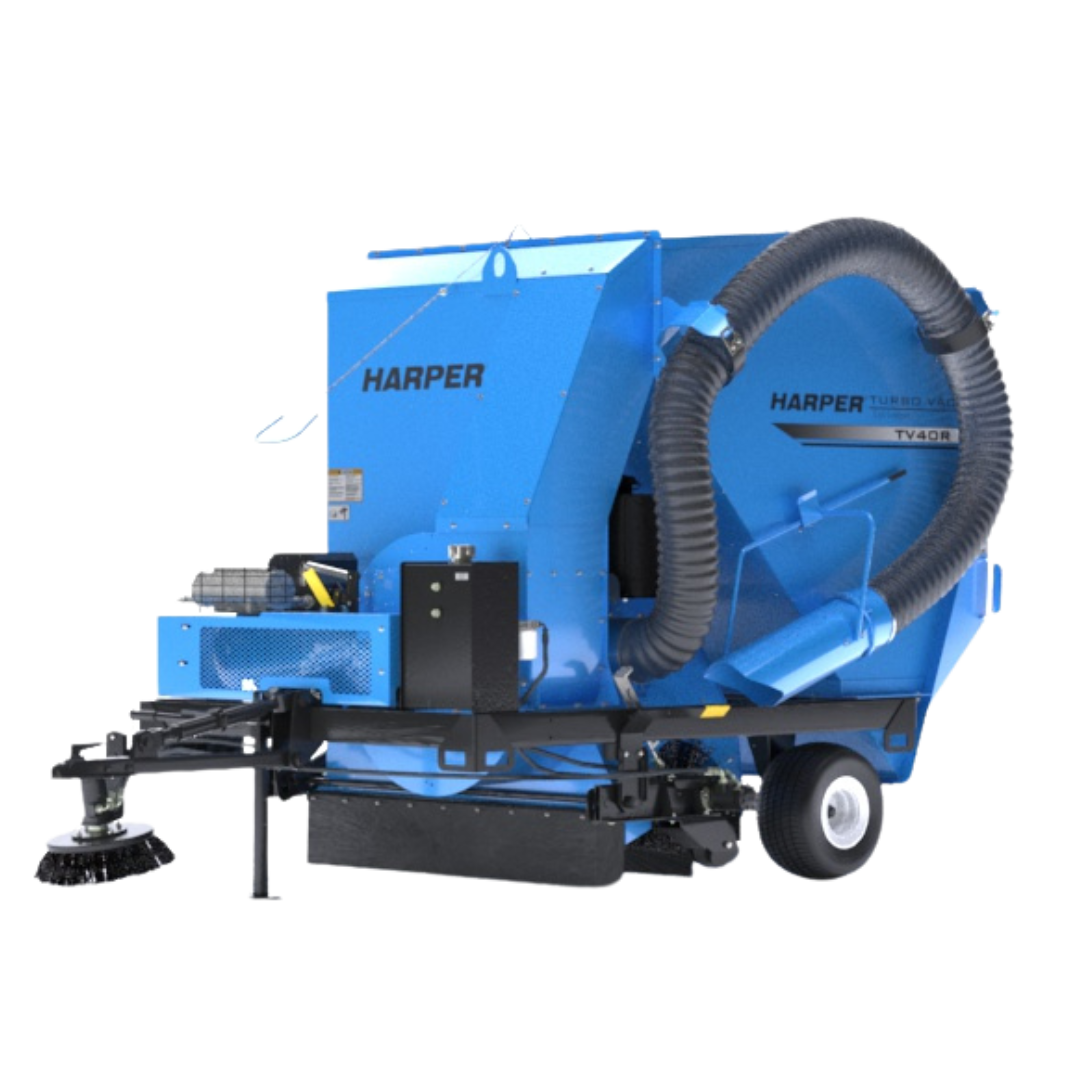

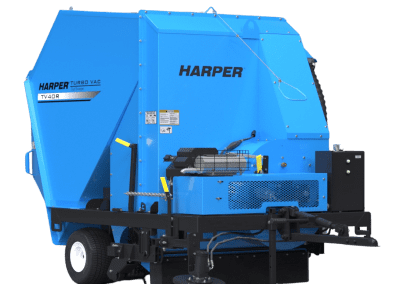

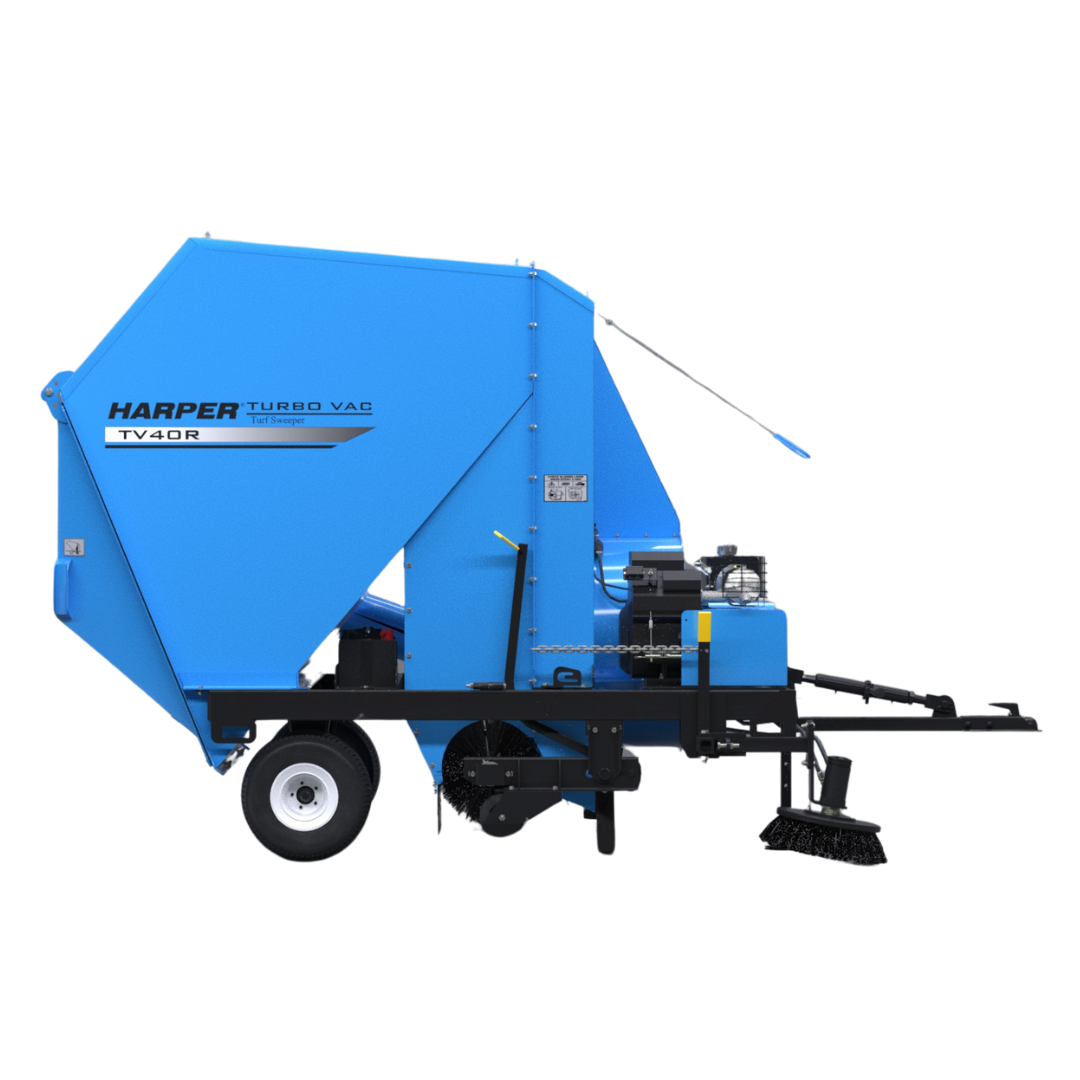

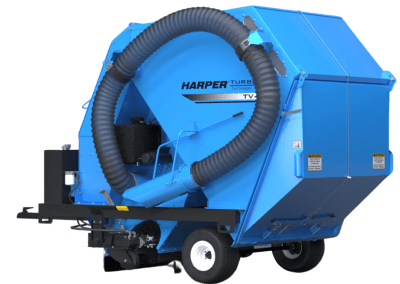

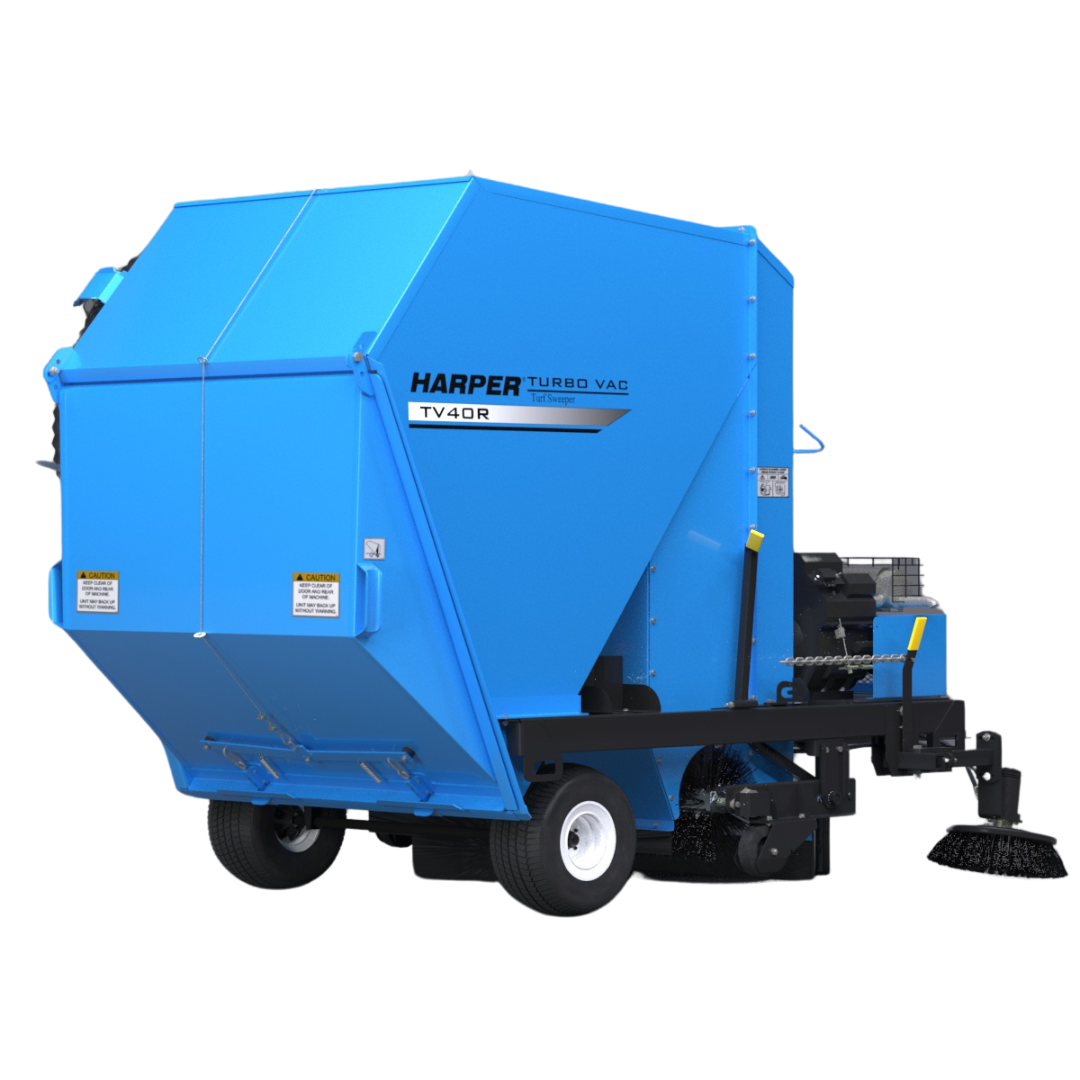

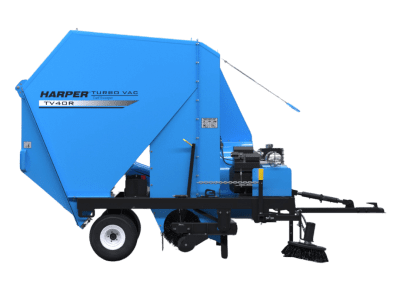

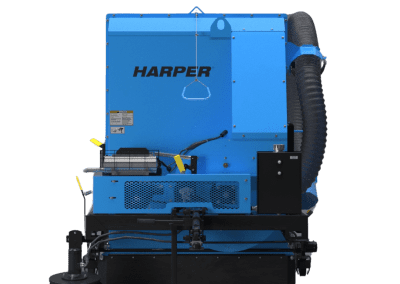

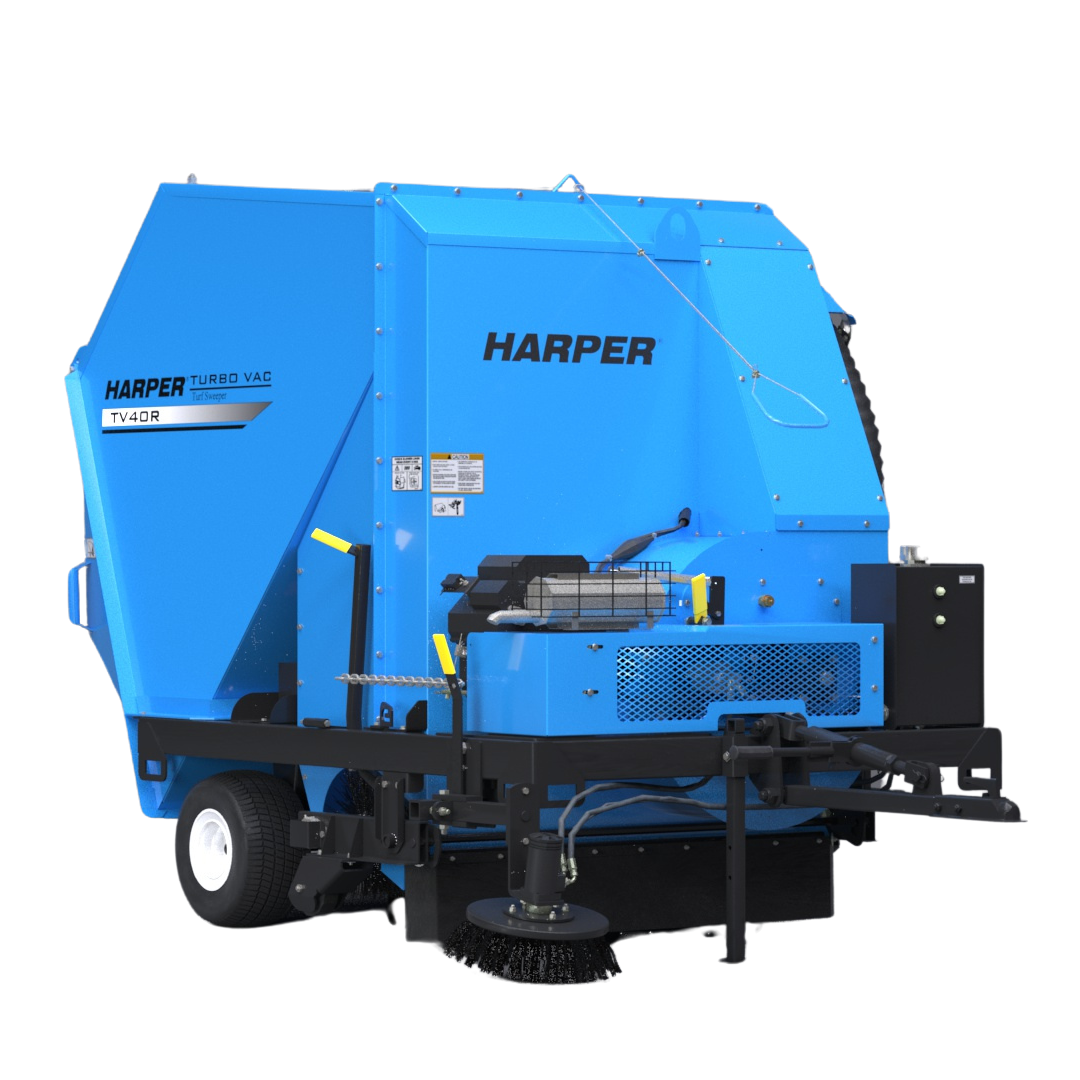

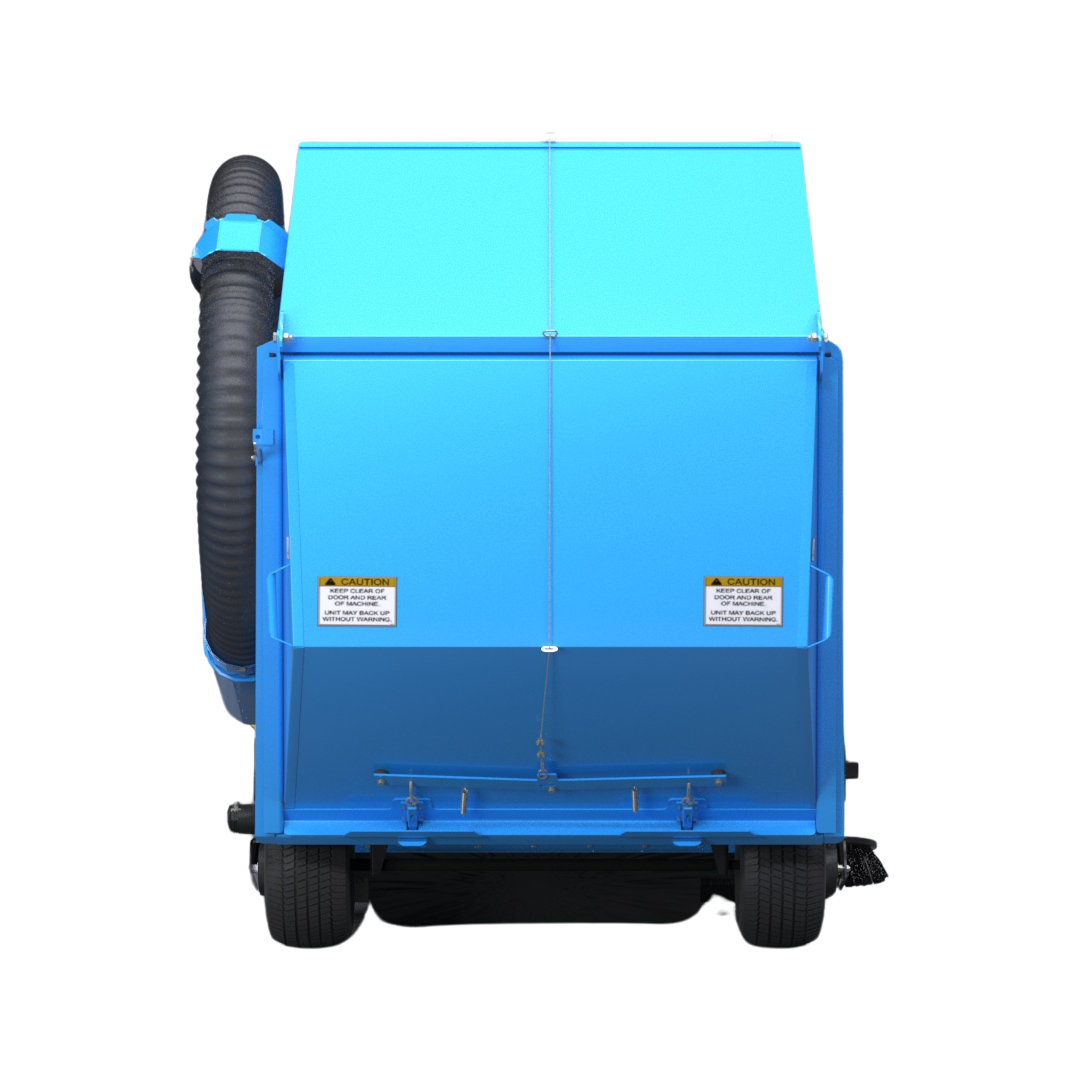

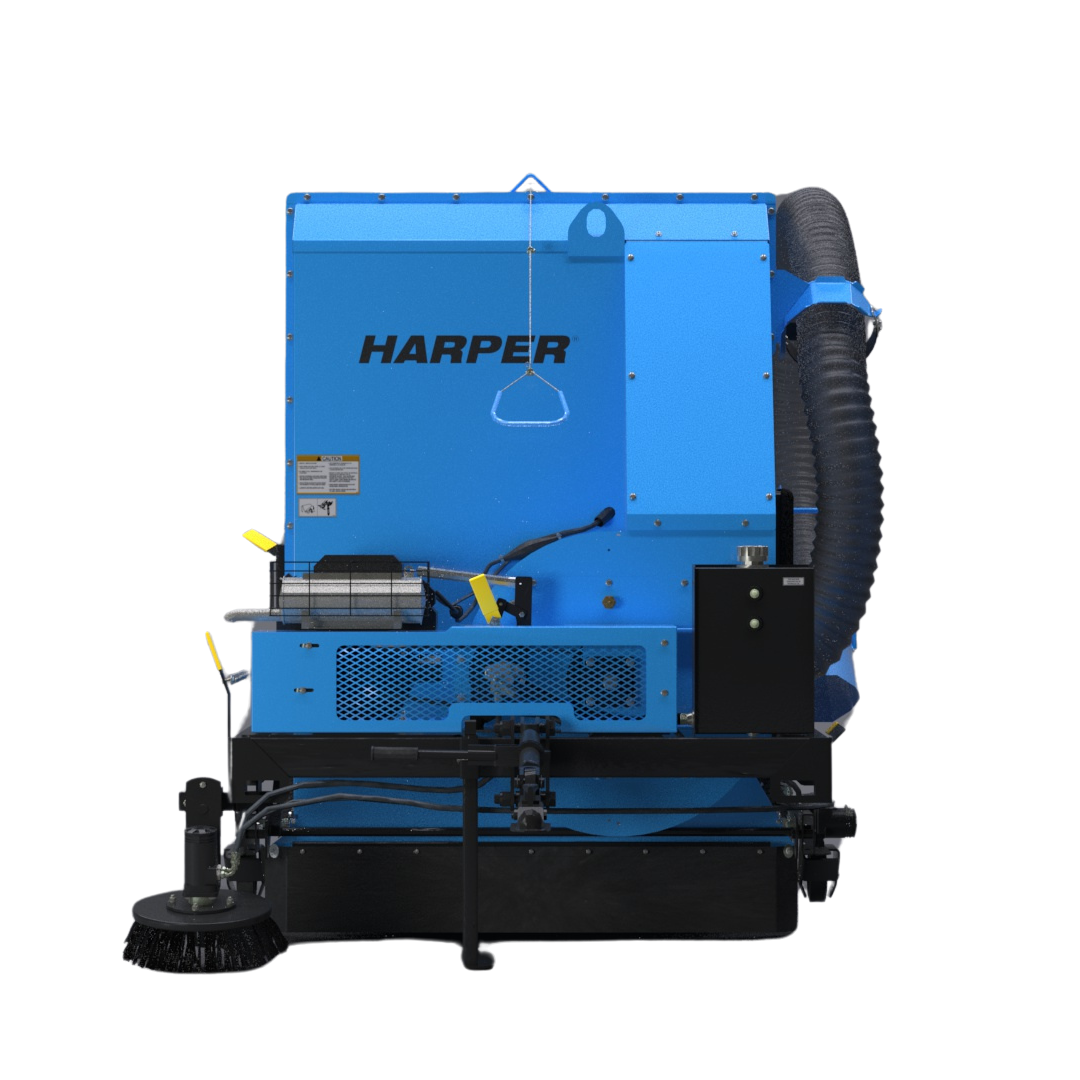

Harper TV40RH

Harper TV40RH

Powerful pick up performance from the cleanest and most cost-effective vacuum on the market, the TV40 is the popular choice to clear leaves and debris. This tow-behind vacuum is ideal for artificial turf, including those with granular rubber pellets. Cleaner. Faster. Harper. Compare it to the competition and see for yourself.

Quick Quote

Name(Required)

More Info

Specifications:
Safety Features: Minimal dust generated, quiet operation - 90dB (TV40 RE), 96dB (TV40 RH)
Blower Drive: (TV40 RE) Double v-belt drive with electric clutch; (TV40 RH) Tractor PTO driven
Blower Fan: 25" diameter abrasion resistant steel with replaceable machined UHMW, poly liner and 1.5" shaft w/self-aligned bearings supporting both ends
Blower Discharge: Access plate for inspection and easy liner replacement
Engine: (TV40 RE) 20 HP Kohler gas engine; (TV40 RH) None (PTO powered) 20 HP required
Hydraulics: (TV40 RE) Belt driven from engine; (TV40 RH) Tractor PTO driven
Hydraulic Oil: Crown AW46; ISO 46 Hydraulic Oil
Construction: 11 gauge welded and reinforced steel tubing
Bearings: Greasable bearings and sealed bearings
Hopper Capacity: 4 cubic yards
Wheels/Tires: 4-bolt wheels and (2) 18.5 x 9.5 tires
Controls: (TV40 RE) Engine, blower and brush controls on machine; (TV40 RH) Tractor PTO Controls
Rotor: 13.5" dia. x 52" wide with adjustable gauge wheels
Discharge: Mechanical trip-and-latch system from operator's seat
Tongue and Hitch: Adjustable tongue doubles as pick up height controller
Paint: Durable 2-part polyurethane
Dimensions: 135" L x 64" W x 82" H
Weight: (TV40 RE) 1600 lbs.; (TV40 RH) 1,820 lbs.

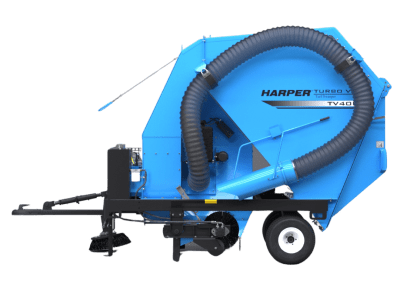

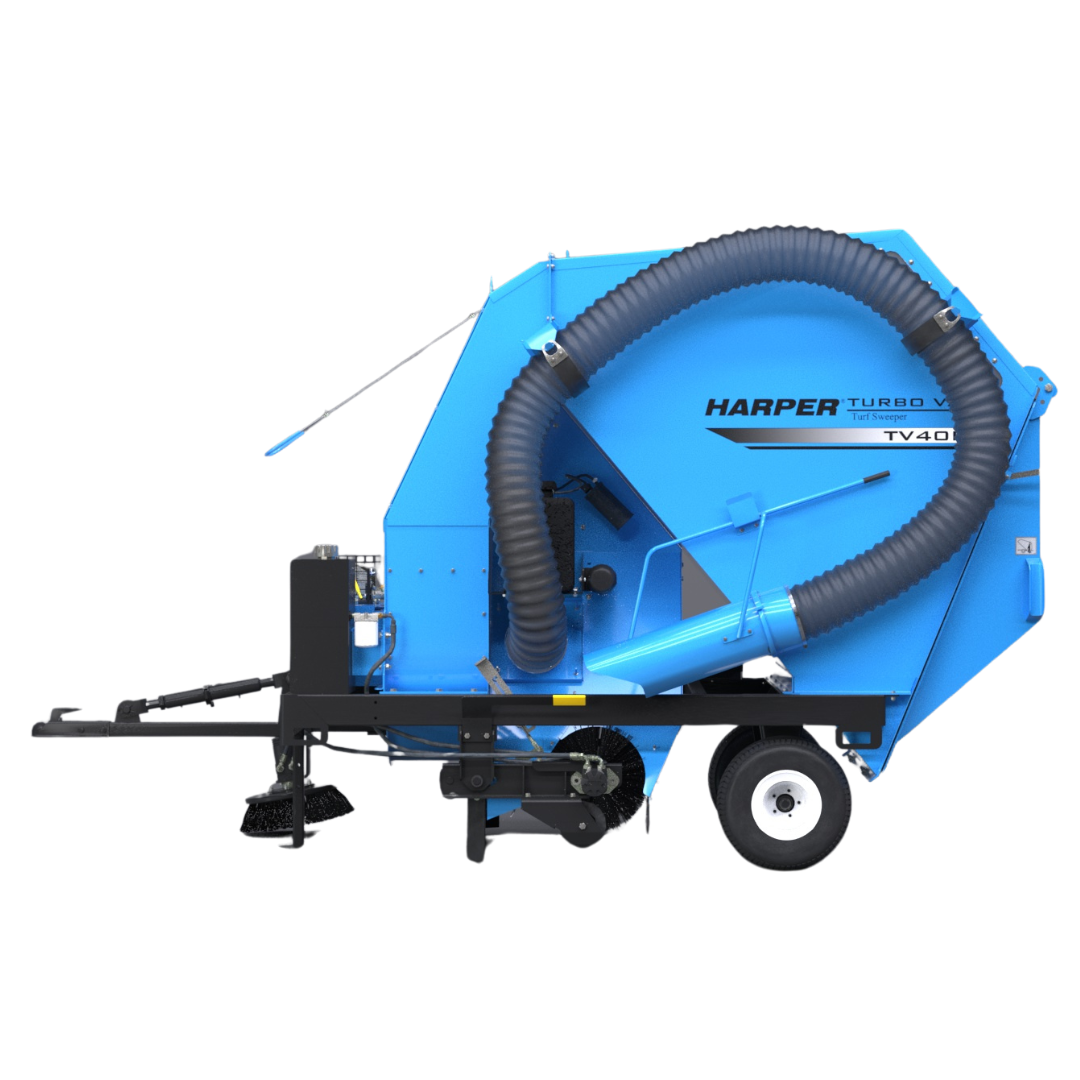

Options: Brush rotor, rubber finger rotor, curb brush and 8" x 16' remote hose attachment

Additional information

Weight 1820 lbs
Dimensions 135 × 64 × 82 in

Powerful pick up performance from the cleanest and most cost-effective vacuum on the market, the TV40 is the popular choice to clear leaves and debris. This tow-behind vacuum is ideal for artificial turf, including those with granular rubber pellets. Cleaner. Faster. Harper. Compare it to the competition and see for yourself.
