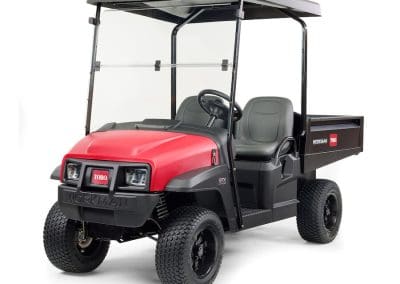

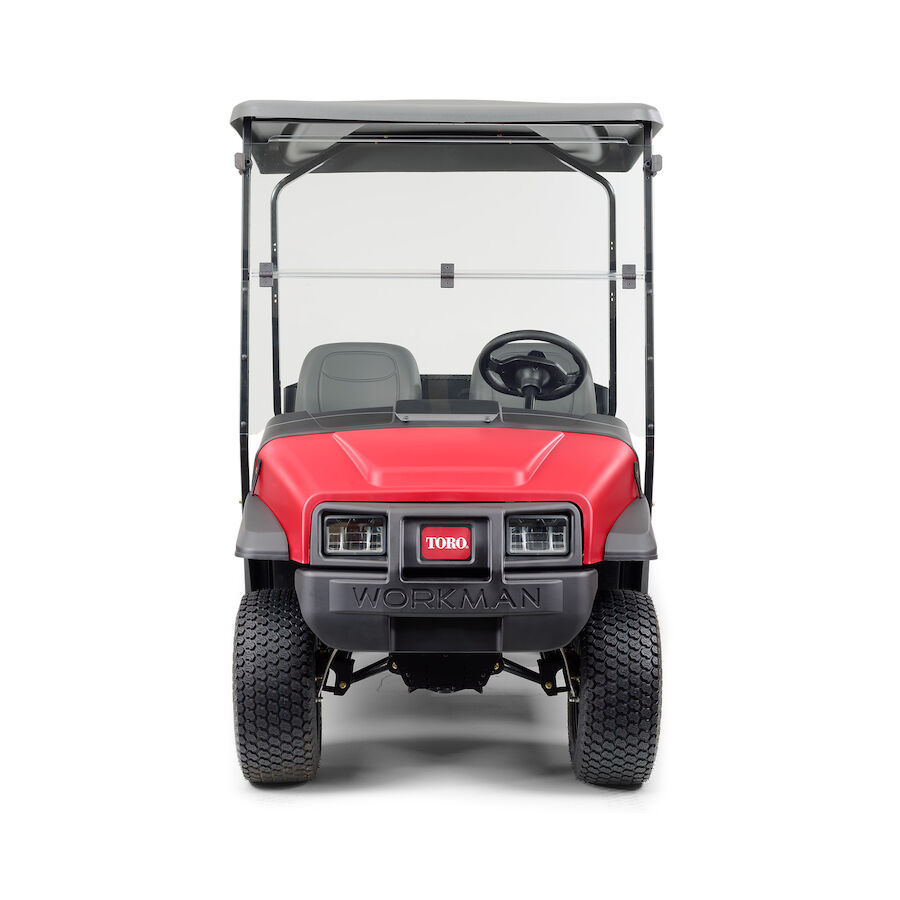

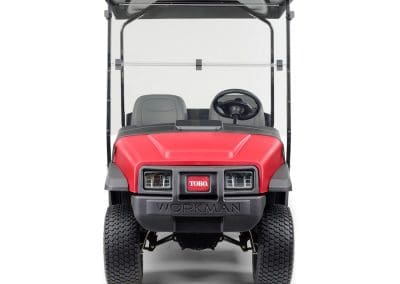

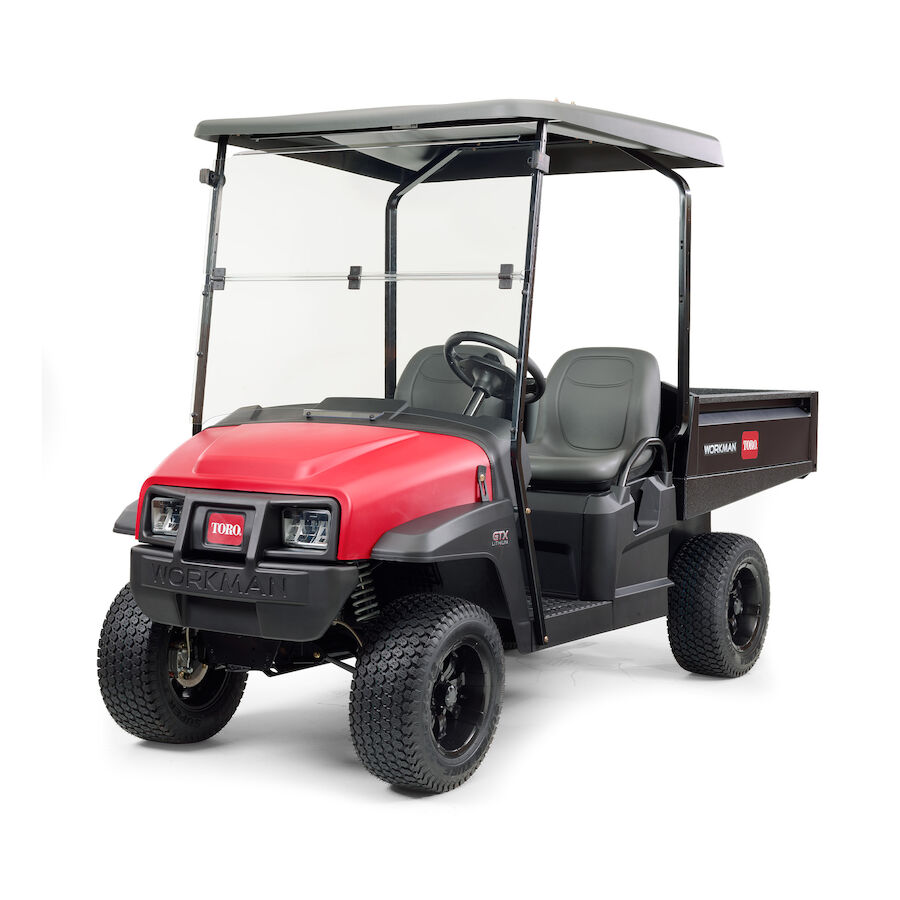

Toro Workman® GTX Lifted Utility Vehicle

Toro Workman® GTX Lifted Utility Vehicle

HyperCell® lithium-ion technology powering the Workman GTX Lithium is built to deliver hours of reliable performance. The GTX Lithium provides a large cargo capacity, so it can handle big jobs. At nearly 400 pounds (181.4 kg) lighter than traditional Workman GTX models, it makes a big impression on productivity without leaving a big impression on turf. The lithium-ion power packs are maintenance-free and have a long lifespan, so the machine is always ready to get to work.

Quick Quote

Name(Required)

More Info

• Maintenance free batteries, improved power-to-weight ratio and extended battery life.
• Additional 3" (7.6cm) of increased ground clearance, and stylish turf friendly tires with modern aluminum wheels.
• An improved power to weight ratio boosts payload capacity and productivity.
• Ergonomically designed steering wheel and intuitive controls that make operation simple and easy.
• Coil-over shocks on all four tires delivers greater suspension travel and adjustability resulting in a smoother ride and minimized operator fatigue.
• Front and rear attachment points for garbage cans, hose reels or walk spreaders free up the bed for more hauling capacity.
• Automotive-grade rack and pinion steering system provides more control and lowers steering effort.
• Virtually unbreakable exterior components and a powder coated frame and underbody give the Workman GTX superior durability.
• Standard USB port makes a dead battery on the job a thing of the past.
• Reliable and consistent stopping power

Specifications
Battery: Two HyperCell lithium-ion batteries standard, option to add an additional battery
Brakes - Front: Hydraulic Disc
Brakes - Rear: Hydraulic disc
Cargo Capacity: 800 lbs. (363 kg)
Charger: On-board high efficiency 900 W smart charger AC Input Voltage: 100-240 VAC AC Input Frequency: 50/60 Hz Max AC Input Current: 10 A
Controller: 540 amps max with regenerative motor braking, roll-away protection, thermal cutback, sealed/waterproof, status light, and three power modes
Crated Model: No
Drivetrain: Battery
Electric Motor: Brushless high-torque AC induction motor with 5.0kW continuous power
Fuel / Power Source: Battery
Gauges/Instrumentation: Hour meter, battery level indicator, USB power port, headlight switch, on/off ignition key switch, and parking brake lever. Two cup holders, radio holder, three in-dash storage compartments, speedometer, gear indicator, estimated charge time, and diagnostic/fault codes.
Ground Clearance: Front: 12" (30.4 cm) Rear: 7" (17.8 cm)
Height: 2-Seat with Bed: 53.2" (135 cm)
Horn: Standard
Inside Turning Radius: 60.25" (153 cm)
Lights: Standard LED Headlights
Optional Accessories: Canopy, solid folding windshield, storage box, trash can mount, bed racking, electric bed lift, brush guard, 12V outlet, Brake/tail/signal lights, ROPS certified hard cab, back up alarm kit, parking brake alarm kit, 2-post ROPS kit, range cage, and glass windshield.
Outside Turning Radius :20.7' (6.3 m)
Power Train (Engine Description): 48V brushless AC induction drive
Product Length: 2-Seat with Bed: 119" (302 cm)
Rear Draw Bar: Standard
Roll-Over Protection (ROPS): Optional
Starting: Pedal Start
Steering System Description: Manual rack and pinion steering system with ergonomically positioned column. Steering wheel has 2.75 turns lock-to-lock with 13.75" (35 cm) diameter.
Suspension - Front: Modified MacPherson Strut, adjustable coil over shocks
Suspension - Rear: Articulating swing arm, adjustable coil over shocks
Tires - Front: 22" x 9.5" - 12", 4-ply. Or alternate 4-ply/6-ply
Tires - Rear: 22" x 9.5" - 12", 4-ply. Or alternate 4-ply/6-ply
Total Vehicle Capacity: 1,200 lbs. (544 kg)
Towing Capacity: 1500 lbs. (680 kg)
Traction Drive (System): 2WD
Vehicle Configuration: Lifted
Vehicle Type: Light Duty
Weight: 2-Seat with Plastic Cargo Bed: 1,005 lbs. (455.9 kg)
Wheelbase: 2-Seat with Bed: 77.8" (197 cm)
