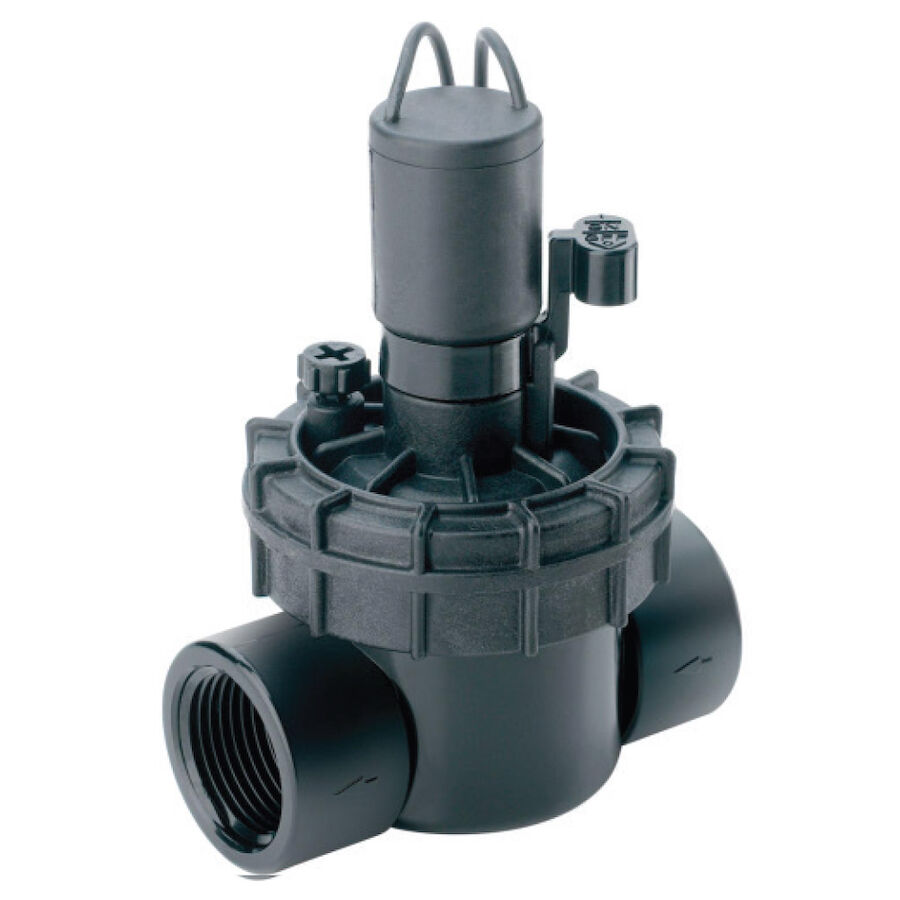

Toro 1″ (2.5 cm) Jar Top In-line Valve with Flow Control (Thread)

Toro 1″ (2.5 cm) Jar Top In-line Valve with Flow Control (Thread)

Built to take the pressure, the Toro 1″ (2.5 cm) In-Line Jar-Top Valve operates in the widest flow and pressure ranges from 0.25 to 30 GPM (.9 to 113.6 LPM) and 10 to 150 PSI (.7 to 10.3 BAR). These valves are typically installed below ground and are housed in a valve box keeping them securely out of sight. The threaded bonnet jar top system enables fast and easy servicing.

Quick Quote

Name(Required)

More Info

• Manual Internal/ External Bleed
• Santoprene Diaphragm
• Encapsulated Solenoid
• Flow Control

Specifications
Flow: 0.25 - 30.0 GPM (1 - 114 LPM)
Holding: 0.20 Amps
Inlet / Outlet: 1" (2.5 cm) Female NPT
Inrush: 0.40 Amps
Operating Pressure: 10 - 150 PSI (0.70 - 10.3 BAR)
Solenoid: 24 VAC Solenoid
Valve Size: 1"
Valve Type: In-Line

Built to take the pressure, the Toro 1″ (2.5 cm) In-Line Jar-Top Valve operates in the widest flow and pressure ranges from 0.25 to 30 GPM (.9 to 113.6 LPM) and 10 to 150 PSI (.7 to 10.3 BAR). These valves are typically installed below ground and are housed in a valve box keeping them securely out of sight. The threaded bonnet jar top system enables fast and easy servicing.
