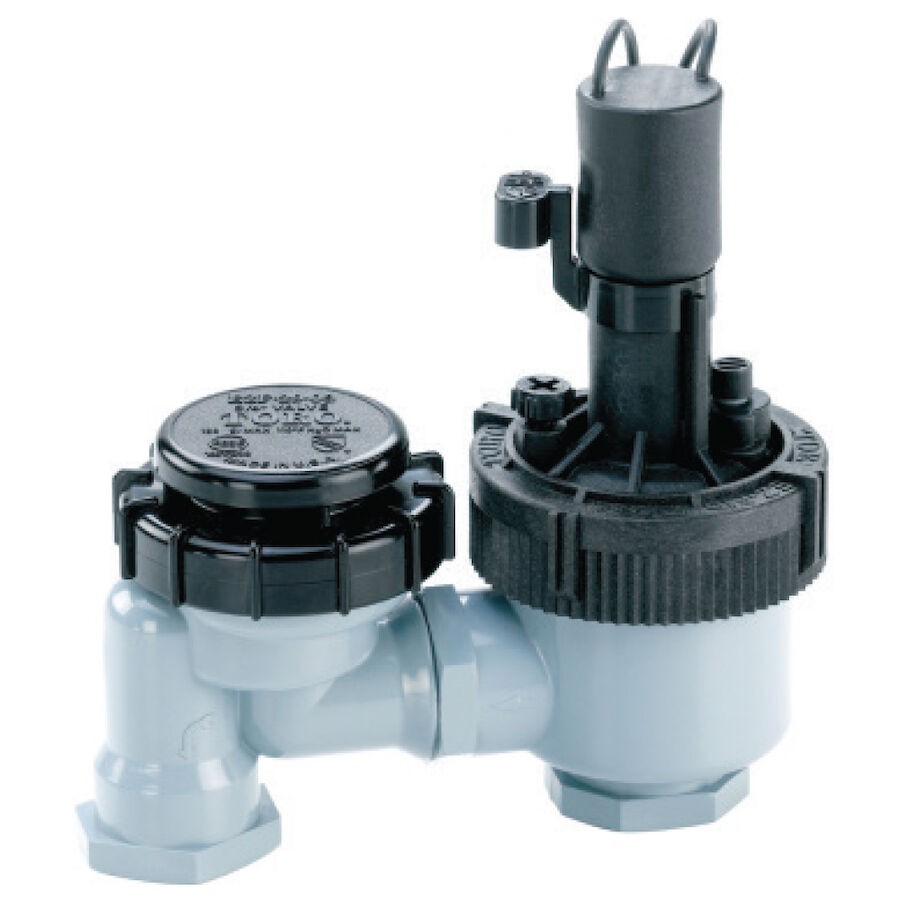

Toro 3/4″ (1.9 cm) Jar Top Anti-siphon Valve

Toro 3/4″ (1.9 cm) Jar Top Anti-siphon Valve

Toro Anti-Siphon Valves provide the features and benefits of our popular jar top valves and atmospheric backflow preventer in one easy to install device. These valves are typically installed 6″ to 12″ (15.2 cm to 30.5 cm) above the highest sprinkler making them easy to access and install. The threaded bonnet jar top system enables fast and easy servicing. Toro Anti-siphon Valves feature flow control making it possible to fine-tune the amount of water pressure going to each individual zone, reducing misting and fogging at the sprinkler and saving water.

Quick Quote

Name(Required)

More Info

• Manual Internal/ External Bleed
• Santoprene Diaphragm
• Encapsulated Solenoid
• Flow Control

Specifications
Flow: 0.25 - 30.0 GPM (1 - 114 LPM)
Holding: 0.20 Amps, 5.75 VA
Inlet / Outlet: 3/4" (1.9 cm) Female NPT
Inrush: 0.40 amps, 11.50 VA
Operating Pressure: 10 - 150 PSI (0.70 - 10.3 BAR)
Solenoid: 24 VAC Solenoid
Valve Size: 3/4"
Valve Type: Anti-Siphon

Toro Anti-Siphon Valves provide the features and benefits of our popular jar top valves and atmospheric backflow preventer in one easy to install device. These valves are typically installed 6″ to 12″ (15.2 cm to 30.5 cm) above the highest sprinkler making them easy to access and install. The threaded bonnet jar top system enables fast and easy servicing. Toro Anti-siphon Valves feature flow control making it possible to fine-tune the amount of water pressure going to each individual zone, reducing misting and fogging at the sprinkler and saving water.
