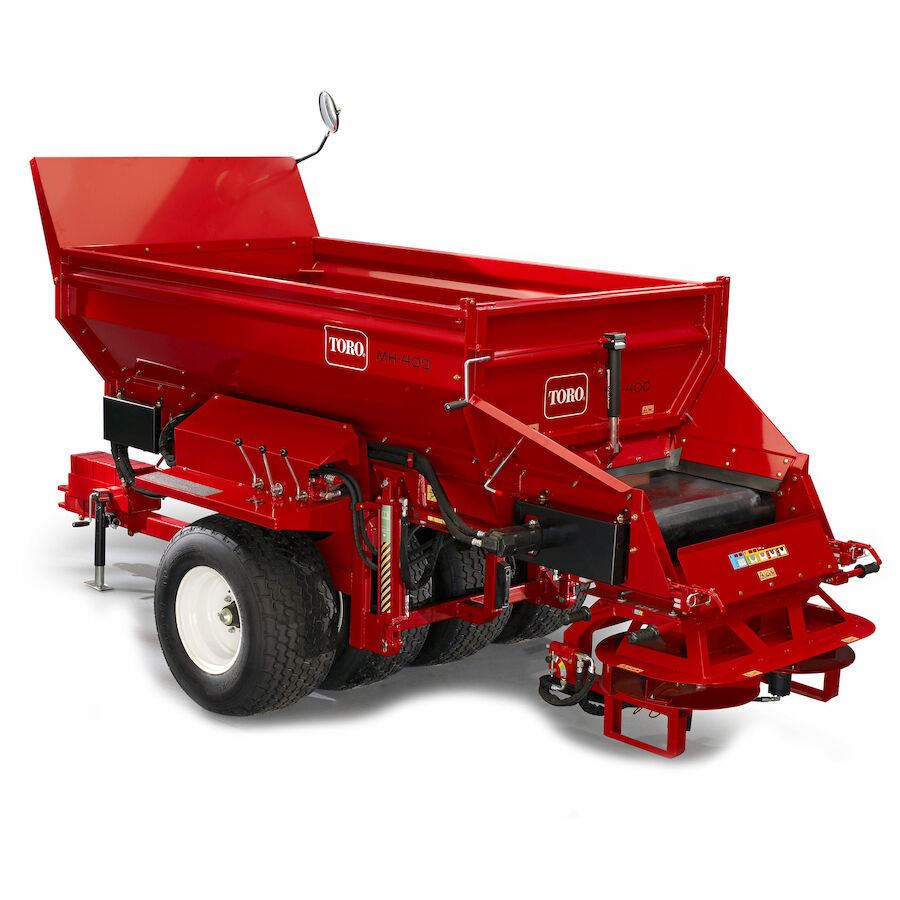

Toro 4 cu. yd. MH-400 Series Broadcast Style Topdresser

Toro 4 cu. yd. MH-400 Series Broadcast Style Topdresser

The large capacity MH-400 delivers versatility and performance to tackle a wide range of jobs at any facility. The cross conveyor is ideal for completing renovations, cart path rebuilding, applying mulch, back filling of drainage ditches, and much more. Install the twin spinner accessory and the MH-400 becomes a large area topdresser to transport and accurately spread materials ranging from crumb rubber, to fertilizer, to a sand/peat topdressing mix. The rear hitch receiver allows implements, such as a wood chipper, to be towed in tandem. An integral component of any maintenance program, the efficient MH-400 reduces labor, saves time and cuts operating costs.

Quick Quote

Name(Required)

More Info

• The infinitely adjustable tailgate opens and closes with ease, even with sand underneath.
• A unique, four wheel walking beam suspension contains two separate axles so that all four wheels are always in contact with the ground regardless of terrain and an even weight distribution provides a light footprint on the turf.
• Evenly apply materials to the turf from 9 ft (2.74 m) to 40 ft (12.2 m) with the patented sliding adjustment for positioning of the twin spinners. This unique drop zone system adjusts where material lands on the spinner disks, resulting in an even pattern across the entire spread width.
• Eliminate guesswork from setting up your spread pattern. Choose your spread pattern, identify your color and make your adjustments.
• Eliminates load shifting of material and uses a tight rubber seal on the sides preventing material from escaping.
• 2-wheel electrically powered, drum style brakes provide enhanced control in various terrain. Also available in 4-wheel brake configuration.

Specification
Conveyor Belt: One-piece vulcanized, self-tracking, 30" (76.2 cm) wide
GVWR: 14,800 lbs. (6713 kg)
Height: 86" (2.2 m)
Hopper Capacity: 4 cu. yards (3.06 cu. m)
Hydraulic Connection: Recommended flow (min., no options installed): 6 US gal. /min. (23 L /min.) Recommended flow (min., options installed): 10 US gal. /min. (38 L /min.) Recommended input pressure (min.): 2,000 psi (138 bar)
Length: 190" (4.8 m)
Operating Width (Working Width): Variable, up to 40' (12.2 m) using twin spinner accessory
Optional Accessories: Twin Spinner Assembly, Cross-Conveyor Swivel Kit That Extends up to 63.3" (159.5 cm) From Centerline of Topdresser, Hopper Vibrator, 2 to 4 Wheel Brakes
Payload (Tare): 11,800 lbs. (5352.3 kg)
Recommended Tow Vehicle Requirement: 45 hp (33.5 kW)
Tires: 32" x 16" - 15", 10-ply
Towing Capacity: 15,850 lbs. (7189 kg) maximum payload
Weight: 3,000 lbs (1,360.7 kg) - empty with no options installed
Width: 78" (1.98 m)
Wireless Controller: No
