Toro 5000 Series 72 in. (183 cm) 26.5 hp EFI 747cc

Toro 5000 Series 72 in. (183 cm) 26.5 hp EFI 747cc

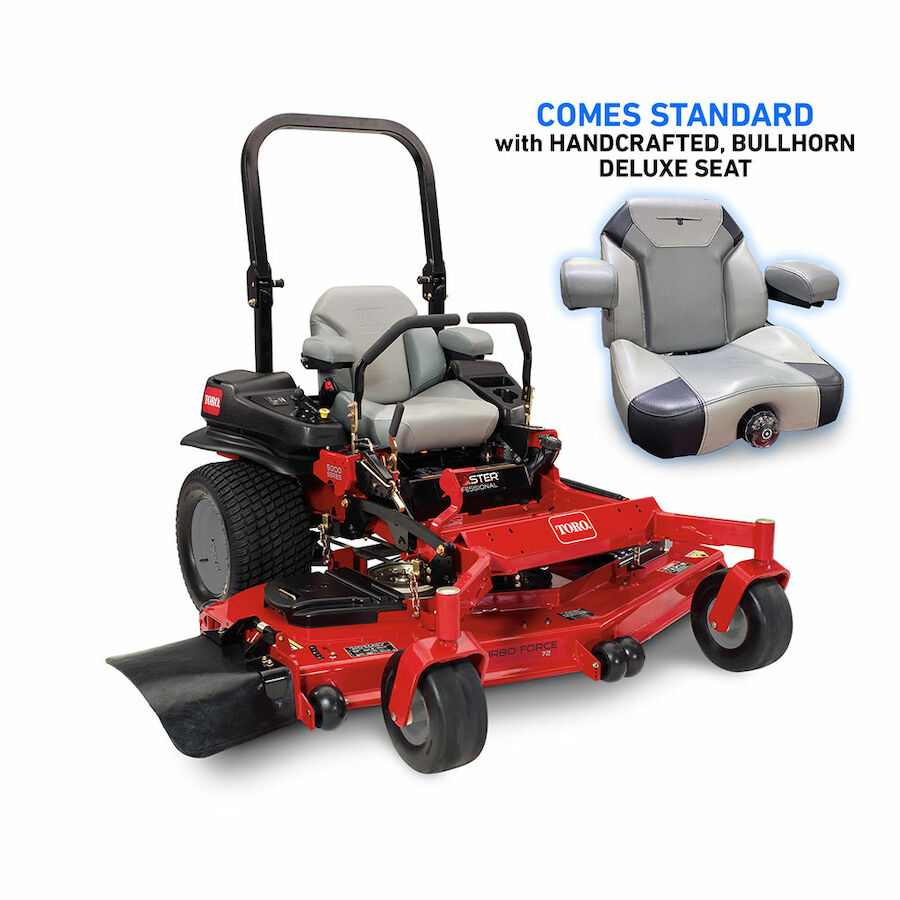

Z Master® 5000 Series – 26.5 hp (19.5kW) Kohler® Command Pro EFI 747cc Engine with 72 in. (183 cm) TURBO FORCE® deck.

Quick Quote

Name(Required)

More Info

• Deluxe suspension seat features thick cushions, large bolsters and 3-D isolator mounts that absorb bumps and vibrations to reduce operator fatigue, fully adjustable to match operator comfort
• Our TURBO FORCE deck features heat-treated steel blades and our patented adjustable discharge chute, nothing cuts as fast or as well
• Unitized pump and wheel motor uses proven commercial hydraulic components while eliminating hoses and other potential leak points
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications:
Adjustable Discharge Baffle: Standard, Tools-Free
Air Filter: Heavy-Duty Canister Air Cleaner
Anti Scalp Wheels: 6 Standard, 1 Optional
Armrests: Standard
Blade Tip Speed: 18,500 ft/min / 5,638 m/min
Blades: 0.204 in. (0.5 cm) heat-treated steel
Box Dimensions: 91 in. x 80.5 in. x 52.5 in. / 231.1 cm x 204.5 cm x 133.4 cm
CARB Compliant: Not CARB Compliant
Carrier Frame: 3 in. x 1.5 in. x 10 gauge (7.6 cm x 3.8 cm x 10 gauge)
Caster Tires: 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Flat-Free Semi-Pneumatic
Comfort Platform: Deluxe Suspension with 3-D Isolation Mounts
Deck Design: 80-Grade 7-Gauge 72" (183 cm) TURBO FORCE® w/bull-nose bumper
Deck Material: 12 Gauge Steel
Deck Size: 72 in / 183 cm
Discharge Chute: Rubber
Drive System: Hydraulic Unitized Pumps and Wheel Motors
Drive Tires: 24 in. x 12 in. - 12 in. (61 cm x 30.5 cm - 30.5 cm)
Engine: 26.5 hp* (19.5kW) Kohler® Command Pro EFI 747 cc
Engine Brand: Kohler
Engine Displacement (cc): 747 cc
Engine Horsepower: 26.5 hp
Forward Ground/Transport Speed: Up to 10.0 mph / 16.0 kph
Front Bumper: Reinforced Bull-Nose
Fuel Capacity: 12 gal. / 45.4 L / 48 Qt.
Fuel Type: Gasoline
Greasable Bearings: Yes
Height of Cut: 1.0 - 5.5 in. / 2.5 - 14.0 cm
Hour Meter: Standard Hour Meter
Hydraulic Fluid: Premium synthetic
Product Type: Zero Turn Mowers
Product Use: Commercial
Roll-Over Protection (ROPS): Folding; Standard
Seat: Handcrafted Deluxe Suspension Seat with Arm Rests Featuring Bullhorn Accent
Spindle Bearings: Maintenance-free
Spindle Housing: 9 in / 22.9 cm Diameter Cast Aluminum
Start Type: Electric
Steering Controls: 1-5/8" (4.1 cm) Diameter Grips; Adjustable, Dampened

Additional information

Fuel Type

Deck Width

Is CARB Compliant?

Series:

Z Master® 5000 Series – 26.5 hp (19.5kW) Kohler® Command Pro EFI 747cc Engine with 72 in. (183 cm) TURBO FORCE® deck.
