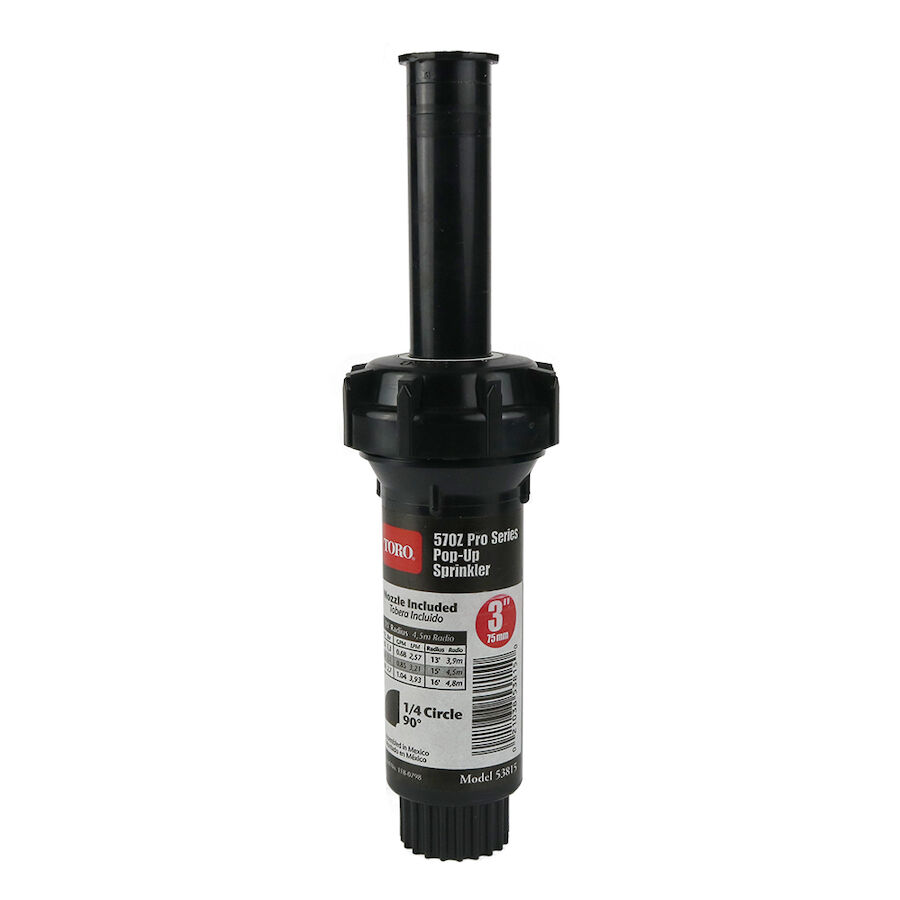

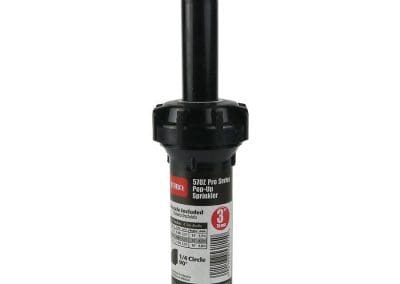

Toro 570Z PR Series

Toro 570Z PR Series

Toro’s 570Z PR Series spray bodies presents a constant pressure at the nozzle of 30 psi to help ensure the entire zone is performing consistently across each and every sprinkler. Certified to EPA WaterSense® requirements, 570Z PR spray bodies have been proven to eliminate water waste caused by nozzle misting and overspray that results from high pressure situations. Available in 3”, 4”, 6”, and 12” models with features that include a replaceable pressure-activated wiper seal, an easy-to-adjust ratcheting riser, and factory-installed Check-O-Matic (COM) seal, the pressure-regulated 570Z PR spray bodies provide everything needed to become your everyday spray body.

Quick Quote

Name(Required)

More Info

• Pressure regulating – factory installed regulator operates at a standard 30 psi to prevent misting and water waste
• Zero-flush seal prevents water waste at start up, allowing more heads to be installed on same line
• Ratcheting riser feature for easy and reliable arc adjustment
• Less visible, reducing damage from exposure or vandals.
• Built into the riser and restricts water loss by 99% if the nozzle is removed or damaged, eliminating potential erosion or safety concerns. Allows for “dry” nozzle and filter-replacement or maintenance, while the system is running.
• Maintains constant 30 psi (2,1 Bar) psi outlet pressure, which minimizes misting and fogging caused by pressures above 30 psi (2,1 Bar).
• Robust retraction spring and enhanced seal material ensures positive pop-up and retraction on all 570Z models.

Specifications
Cap Diameter: 2" (50 mm)
Flow: 0.05-3.45 GPM (0.2 - 13.1 LPM)
Inlet: 1/2" (1.3 cm) NPT female threaded
Pop-Up Height: Shrub adapter, 3”, 4”, 6” and 12” (76, 100, 150, and 300 mm)
Radius: Dependent on chosen nozzle / emission device
Recommended Operating Pressure: 30 - 70 PSI

Toro’s 570Z PR Series spray bodies presents a constant pressure at the nozzle of 30 psi to help ensure the entire zone is performing consistently across each and every sprinkler. Certified to EPA WaterSense® requirements, 570Z PR spray bodies have been proven to eliminate water waste caused by nozzle misting and overspray that results from high pressure situations. Available in 3”, 4”, 6”, and 12” models with features that include a replaceable pressure-activated wiper seal, an easy-to-adjust ratcheting riser, and factory-installed Check-O-Matic (COM) seal, the pressure-regulated 570Z PR spray bodies provide everything needed to become your everyday spray body.
