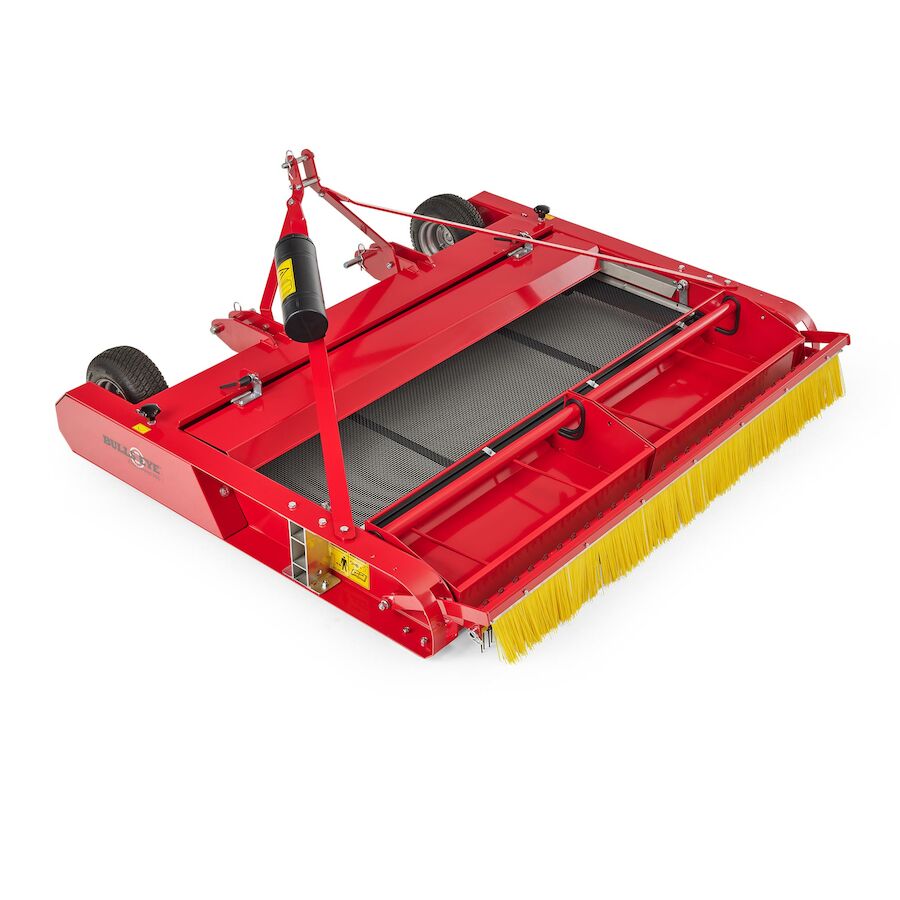

Toro Bullseye® FieldSweep™ 660

Toro Bullseye® FieldSweep™ 660

The Bullseye FieldSweep™ 660 is a ground-driven surface debris removal and grooming tool designed primarily for synthetic turf fields. The counter rotating paddle style brushes on the FieldSweep™ 660 lift surface debris and infill material to be separated on the shaking sieve. The infill is returned to the surface and brushed in while the unwanted debris continues across the sieve to the easily removable collection bins on the rear of the unit. The tine section aids in decompaction while the rear brush grooms the field surface to leave a clean, smooth and aesthetically pleasing finish. Optional accessories allow customization for different types of infill material and any tow vehicle.

Quick Quote

Name(Required)

More Info

• Removes surface debris, lightly decompacts infill, smooths the field surface and with the optional magnet installed, removes metallic objects in a single pass.
• Can be towed behind any utility vehicle or tractor. No auxiliary power supply required. See specs for options.
• Large shaker sieve surface area allows infill to fall back onto field where the straight brush reincorporates it back into the turf canopy.
• Durable and reliable for many years of use.
• 65.7" (167 cm) working width and 216,810 sq. ft. (20,040 sq. meter) per hour capacity*

Specification
Height: 29.5" (74.9 cm)
Hopper Capacity: 2X @ 1,220 cu. in. (2X @ 20 liters)
Length: 68.3" (173.4 cm)
Maximum Operating Depth (Working Depth): Up to 0.4" (10 mm)
Operating Speed: Up to 7.5 mph (12 km/h) depending on field conditions
Operating Width (Working Width): 65.7" (167 cm)
Optional Accessories: Drawbar Hitch & Wheel Kit, Magnet Kit, 0.126" Sieve Kit (144-7757), 0.157" Sieve Kit (144-7758), 0.236" Sieve Kit (144-7760)
Productivity: 216,810 sq. ft. (20,040 sq. meters) at maximum operating speed
Recommended Tow Vehicle Requirement: Tractor with 550 lb. (250 kg) lift capacity and 3-point Category 1 hitch, or Utility Vehicle with 485 lbs. (220 kg) minimum towing capacity (Drawbar Hitch & Wheel Kit required).
Standard Sieve Size: 0.196" x 0.196" (5 x 5 mm)
Weight: 485 lbs. (220 kg)
Width: 75.4" (191.5 cm)

Additional information

Operating Width

Series:

The Bullseye FieldSweep™ 660 is a ground-driven surface debris removal and grooming tool designed primarily for synthetic turf fields. The counter rotating paddle style brushes on the FieldSweep™ 660 lift surface debris and infill material to be separated on the shaking sieve. The infill is returned to the surface and brushed in while the unwanted debris continues across the sieve to the easily removable collection bins on the rear of the unit. The tine section aids in decompaction while the rear brush grooms the field surface to leave a clean, smooth and aesthetically pleasing finish. Optional accessories allow customization for different types of infill material and any tow vehicle.
