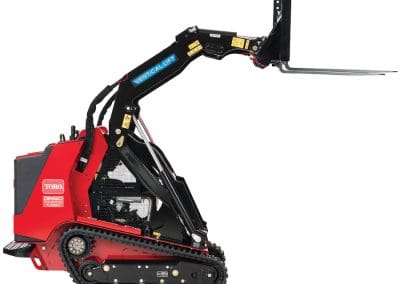

Toro Dingo® TX 1000 TURBO Track Loader, Narrow

Toro Dingo® TX 1000 TURBO Track Loader, Narrow

The Dingo TX 1000 TURBO is a turbocharged marvel that not only enhances the unmatched success and superior performance of its predecessor but also incorporates the innovative Smart Power® feature. This feature optimizes engine, auxiliary, and traction torque, providing users with an unparalleled compact utility loader experience. With a width of under 35 inches, the Dingo TX 1000 TURBO narrow track effortlessly navigates through standard 36-inch gates, ensuring versatility and accessibility across a range of job sites.

Quick Quote

Name(Required)

More Info

• Smart Power allows the machine to run more efficient by automatically adjusting traction speed to maximize engine, auxiliary, and traction torque.
• Compact footprint fits through standard 36" gates
• Maximum height and reach easily clears the side of a 30-yard dumpster
• Patented traction control

Specifications:
Air Filter: Remote: Primary and Safety Elements
Cooling System: Combo Crossflow Radiator and Oil Cooler
Dump Angle: 40 degrees
Dump Height (cm): 153.2
Dump Height (inches): 60.3
Engine Make: Yanmar
Engine Model: 3TNV80FT Turbo Diesel Tier 4 & EU Stage 5 compliant
Fuel Tank (gallons): 10.25
Fuel Tank (liters): 38.8
Fuel Type: Diesel
Ground Clearance (cm): 15
Ground Clearance (inches): 5.9
Ground Pressure: 6.1 psi
Ground Speed Forward (mph): 4.1
Ground Speed Foward (km/h): 6.6
Ground Speed Reverse (km/h): 6.6
Ground Speed Reverse (mph): 4.1
Hinge Pin Height (cm): 205.7
Hinge Pin Height (inches): 81
Hydraulic Flow: 12.3 gpm (each pump)
Hydraulic Flow Auxilary: 13.2 gpm, Low Flow 4.9 gpm
Hydraulic Pressure: 3,000 psi
Hydraulic Reservoir Capacity (gallons): 8.6
Hydraulic Reservoir Capacity (liters): 32.5
Loader Arms: Vertical Lift
Manufacturer's Gross HP Rating (HP): 24.7
Manufacturer's Gross HP Rating (kW): 18.4
Max Operating Height (cm): 269.7
Max Operating Height (inches): 106.2
Oil Capacity (liters): 3.6
Oil Capacity (quarts): 3.8
Overall Height w/bucket (cm): 138.7
Overall Height w/bucket (inches): 54.6
Overall Height w/o bucket (cm): 138.7
Overall Height w/o bucket (inches): 54.6
Overall Length w/bucket (cm): 264.2
Overall Length w/bucket (inches): 104
Overall Length w/o bucket (cm): 210.8
Overall Length w/o bucket (inches): 83
Overall Width w/bucket (cm): 107.2
Overall Width w/bucket (inches): 42.2
Overall Width w/o bucket (cm): 87.9
Overall Width w/o bucket (inches): 34.6
Rated Operating Capacity* (kg): 453
Rated Operating Capacity* (lbs): 1000
Reach – Fully Raised (cm): 59.2
Reach – Fully Raised (inches): 23.3
Track Length (inches): 126.6
Track Length(cm): 321.6
Track Width (cm): 15
Track Width (inches): 5.9
Tracks: MERT track with “B” style tread
Traction: Dual Hydrostatic Pump
Weight (kg): 1282
Weight (lbs): 2826
Wheelbase (inches): 39
