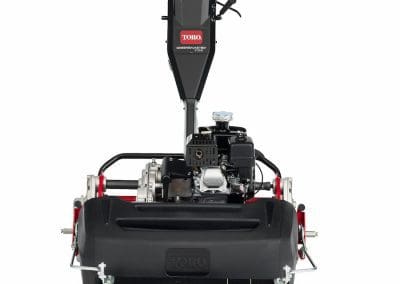

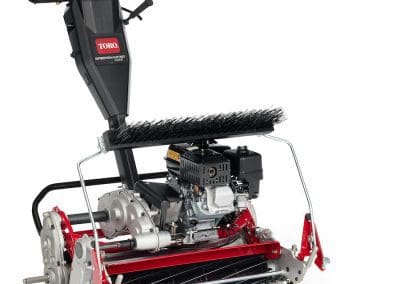

Toro Greensmaster® 1026

Toro Greensmaster® 1026

Toro’s line of fixed-head walk-behind greensmowers have been engineered to bring each operator and greensmower into perfect harmony with one another. Multiple innovations – starting with an industry-first telescoping handle – come together to deliver unparalleled cut quality and consistent playability on each and every green. The modular design also makes the Greensmaster mowers easier than ever to maintain, saving significant time and money and lowering the total cost of ownership.

Quick Quote

Name(Required)

More Info

• Clip frequency can easily be changed in the field to mow the perimeter, collars etc. The quick-change feature also can be locked out for added control.
• Convenient, easy to reach location to engage reel from the operator position.
• 3.5 HP (at 3600 RPM) Honda engine with ample power for cutting and accessorizing.
• Provides long life and best-in-class transmission durability. Lubricated for life, no grease points.
• Engineered to accommodate operators of different heights, for mowing in a natural upright position. Leads to less fatigue and a superior cut. Adjustable to 5 distinct handle positions.
• Make repairs simple and quick. The engine , transmission, drum or cutting unit sub-assemblies can be easily removed for timely and cost effective replacement or repair.
• Two rubber grommets eliminate minor oscillations in Height-of-Cut caused by walking strides. Delivers a consistent cutting height on each and every green for optimal playability.
• The entire Greensmaster 1000 Series fleet can be back-lapped simultaneously without additional motors or bench tools. (Available on the GR 1021 and 1026 only).
• The innovative swing axle design can quickly convert the machine from a Greens to a Tee mower by keeping the bedknife cutting edge in an optimal position for the respective cutting height and the handle location in the correct ergonomic position.
• All operator controls are within easy reach to perfect the mowing process, improve cut consistency, and enhance control – in normal and tight turn-around situations.
• Disengage the traction with a simple lever twist. Getting around the shop has never been easier!
• Numerous quick-change options and accessories are available to help customize the cut and aftercut appearance.
• Change cutting units in just a few minutes! Easily choose between an 8, 11 or 14 blade EdgeSeries™ reel cutting unit configuration. Simply unbolt and replace an entire cutting unit for service or a simple

Specification
Blade Style/Type: Reel
Blade Type (Description): EdgeSeries™ DPA radial reels.
Clip Frequency/Backlapping: Quick-change dual-speed gear drive, combined with positive drive belt - four possible reel speed/clip settings. Backlapping optional.
Clutch: Externally-mounted two sided dry disc clutch actuated by dual motion bail.
Controls: Engine mounted: recoil starter, choke, fuel shutoff. Handle mounted: on/off switch, throttle lever, dual motion traction / safety bail, reel engage lever, service/park brake lever, hour meter, light switch (optional).
Cutting Unit Accessories: 8, 11-Blade DPA Cutting Unit, Roller Options, Groomer Options, Scraper/Brush Options, Bedknife Options, Tools and Maintenance Options.
Cutting Unit Suspension: Fixed
Cutting Unit Type/Configuration: Single detachable cutting unit allows easy removal for service / maintenance or cutting unit exchange for different uses.
Drivetrain: Gas
Fuel / Power Source: Gasoline
Fuel Capacity: 2.1 U.S. qt. (2 L)
Ground Speed - Forward: 0 - 5.3 mph (0 - 8.5 km/h)
Handle: Loop handle with telescoping adjustment with 5" (12.7 cm) total travel, rubber isolated to minimize operator influence during mowing.
Height of Cut Range: For Greens: (Drum Position One) 0.062" - 0.312" (1.5 mm - 8.0 mm) For Tees: (Drum Position Two) 0.25" - 0.625" (6.0 mm - 16.0 mm) High Height of Cut Kit: (Drum Position Two) 1.18" (30 mm)
Kickstand: Standard
Lighting: Optional
Main Frame/Chassis: Fully modular design allows quick disassembly for service / maintenance of all major components.
Mowing Speed: 2.0 - 3.5 mph (3.2 - 5.6 km/h)
Number of Blades: 45604
Optional Accessories: LED Light Kit, Cutting Unit Light Kit Mount, Push Broom Kit, Backlap Access Kit, Backlap Kit, Wireless Hour Meter Kit, High Height of Cut Bracket, Wheel Kit
Parking/Service Brakes: Service / parking – band type.
Power Train (Engine Description): Honda® GX120 - 3.5 hp (2.6 kW) @3600 rpm, gasoline with integral lighting coil.
Reel Diameter: 5 in. (12.7cm)
Reel/Cylinder Drive: Mechanical/Belt
Starting: Recoil
Tires - Rear: Optional - Two quick-detachable pneumatic tires (3" x 3.25" - 6")
Traction Drive: Gear
Traction Drive (System): Full gear drive transmission with integral traction differential and traction drive disconnect to ease movement during service / maintenance operations. Interchangeable drum drive gear cases.
Traction Drum: Dual position traction drum with positions for contour following or forward weight bias at higher heights of cut.
Weight: 240 lbs (108.8 kg) with 11-blade cutting unit, aluminum Wiehle roller.
Width of Cut: 26" (66 cm)

Additional information

Fuel/Power Source

Width of Cut

Suspension

Toro’s line of fixed-head walk-behind greensmowers have been engineered to bring each operator and greensmower into perfect harmony with one another. Multiple innovations – starting with an industry-first telescoping handle – come together to deliver unparalleled cut quality and consistent playability on each and every green. The modular design also makes the Greensmaster mowers easier than ever to maintain, saving significant time and money and lowering the total cost of ownership.
