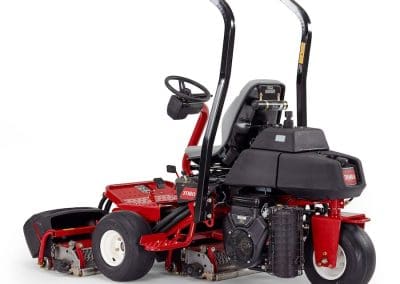

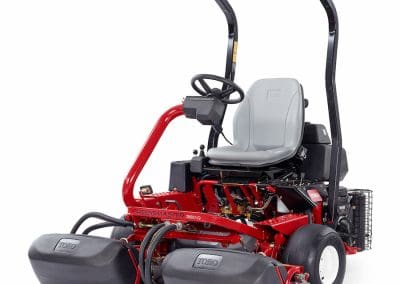

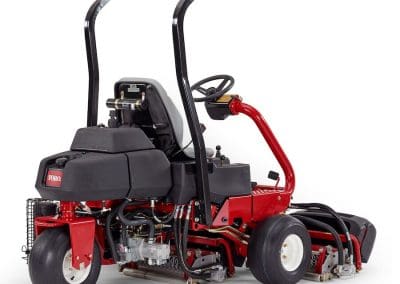

Toro Greensmaster® 3150-Q

Toro Greensmaster® 3150-Q

The Greensmaster 3150-Q is distinguished for its field-proven performance and exceptional quality of cut. Equipped with patented DPA cutting units for a superior cut and minimal maintenance, convenient controls for easy operation, and ample power to handle any application–it’s no wonder this classic model has been trusted over the years to deliver the performance golf courses demand with a putting surface that exceeds expectations.

Quick Quote

Name(Required)

More Info

• The placement of the center cutting unit, located between the the front traction wheels, along with the front center basket removal, allows a low mounting design of the transmission and engine. This lowers the center of gravity, giving the machine much higher hillside stability.
• The Triangle Wheel Stand places the rear wheel track within the radius of the front wheel, which prevents accidentally dropping the rear wheel into a nearby sand bunker while making the turn for the next mowing path.
• All components, especially those that require daily inspection and routine maintenance, are conveniently located for servicing. The Greensmaster® 3250 has fewer hydraulic lines and connectors. All hydraulic components are positioned for easy visual inspection.
• The dependable Turf Guardian™ leak detection technology alerts the operator if a leak occurs. Optional on the Greensmaster® 3250.
• The most advanced cutting unit in the industry:
-Only two adjustments
-Superior height-of-cut retention
-No daily greasing (stainless steel bearings)
-Consistent cutting location edge regardless of reel wear (patented)
-Smallest bedknife increment adjustments .007inch (.178mm)
• Simplified and convenient controls for easy operation.
• Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.

Specifications
Armrests: Optional
Battery: 12V
Bedknife: Replaceable single-edged EdgeMax™ Microcut Bedknife is standard.
Bedknife Adjustment: Dual screw, indexed “click” adjustment to the reel; detents corresponding to 0.0007" (0.018 mm) bedknife movement for each position.
Blade Style/Type: Reel
Blade Type (Description): Reels are 5" (13 cm) in diameter, 21" (53.3 cm) in length. EdgeSeries™ Reels blades are welded to 5 stamped steel spiders, and heat treated. The reel is ground for diameter and concentricity, and relief ground. The reel weldment shaft is a 1.375" (35 mm) diameter tube with internally splined threaded insert. Two stainless steel ball bearings (30 mm inside diameter) slip fit onto reel shaft retained by internally splined threaded insert. Low drag seals/slingers for added protection with o-ring sealed motor and counterweight. Reel position maintained by a wave washer with no adjusting nut.
Clip Frequency/Backlapping: Adjustable up to 1975 RPM at 2850 engine RPM. Backlapping standard.
Controls: Raise/lower-mow lever (joystick). Functional control lever (neutral, mow, transport). Foot operated traction drive and brakes. Hand operated throttle and choke. Mechanical engine speed control.
Cup Holder: Standard
Cutting Unit Accessories: 8, 11, 14-Blade Cutting Unit, Roller Options, Groomer Options, Scraper Options, Bedknife and Bedbar Options, Thatching Reel Accessories, Tools and Maintenance Options.
Cutting Unit Type/Configuration: Cutting units are completely free-floating, each attaching to the tractor by direct pull links and lifted by a centered lift arm. Baskets are supported by carrier frames that are ground following. Cutting unit floatation is unaffected by basket content. Grass baskets are all interchangeable and accessible from the front of the machine. Double A-Arm Suspension utilizing sealed ball joints allows free cutting unit motion in pitch and yaw. Links system for the roll. The basket is directly mounted to the cutting unit displacing weight evenly over front and rear rollers. (patented)
Drivetrain: Gas
Electrical System: 12-volt lead acid, group size U1, with 300 minimum CCA at 0° F. 16 amp alternator. Seat switch. Harness terminals and fuse slot available for optional lights installation.
Engine Cooling: Air Cooled
Fuel / Power Source: Gasoline
Fuel Capacity: 7 U.S. gal. (26.5 L)
Gauges/Instrumentation: Hour Meter
Grass Distribution: Non-adjustable front shield with adjustable cut-off bar to improve grass discharge from reel in wet conditions.
Ground Pressure: 8-12 psi (.55-.83 bar) (dependent on tire pressure) with operator and cutting units down.
Ground Speed - Forward: 0 - 10 mph (0 - 16.1 km/h)
Height: 74.5" (189 cm)
Height of Cut Range: Cutting height is adjusted on front roller by two vertical screws and held by two locking cap screws. Bench HOC range is 0.062" - 0.297" (1.6 - 7.5 mm). With high HOC kit, range is 0.297" - 1.0" (7.5 - 25.4 mm). Effective HOC may vary depending on turf conditions and bedknife installed.
Hydraulic Fluid Capacity: 7.5 U.S. gal. (28.4 L) tank with internal baffle. 1 U.S. gal. (3.8 L) auxiliary tank.
Implement Drive: Single gear pump, mono valve block, series reel drive to 3 motors.
Leak Detection: Standard Turf Guardian™ Leak Detection System. System sounds an alarm and turns on a warning light with the loss of 3-5 oz. of hydraulic fluid.
Lighting: Optional
Mowing Speed: 2 - 5 mph (3.2 - 8 km/h)
Number of Blades: 11, 14, 8
Optional Accessories: 3-Wheel Drive Kit, Thatching Reel (Set of 1), Traction Tire - 18" (45.7 cm), Traction Tire - 20" (50.8 cm), Light Kit, Rear Work Light Kit, Hydraulic Oil Cooler Kit, Traction Speed Control Kit, Spark Arrestor Screen, Bimini Folding Shade, 2WD Weight Kit, 3WD Weight Kit, Utility Bag Kit, Seat Cover, RH Armrest, LH Armrest, Armrest Kit, Wireless Hour Meter
Overall Width: 69.7" (177 cm) with reels
Parking/Service Brakes: Foot activated with two 6" (15.2 cm) drum type brakes mounted on the front wheel motors.
Power Steering: Yes
Power Train (Engine Description): Briggs and Stratton® air-cooled gasoline engine, 18 hp (13.4 kW) @ 3600 rpm, governed to 2850 rpm high idle, 1650 rpm low idle.
Product Length: 90" (229 cm)
Reel Diameter: 5 in. (12.7cm)
Reel/Cylinder Drive: Hydraulic
Rollers: Front: Not included with cutting unit, purchased separately. Option between full, narrow-spaced and wide-spaced Wiehle roller. Rear: Steel full, 2" (5.1 cm) diameter with sealed bearings and through-shaft.
Safety/Operator Safety: Roll Over Protection System standard. Sound level of 82 dB(A) at operator’s ear under normal conditions.
Starting: Electric
Steering System Description: Adjustable steering wheel tilt and a 5-position steering arm tilt.
Tires - Front: 18" x 10.5" - 8", 4-ply, Smooth Tread
Tires - Rear: 18" x 10.5" - 8", 4-ply, Smooth Tread
Traction Drive: 2WD
Traction Drive (System): Hydraulic piston pump, closed loop system. 2WD Parallel Hydrostatic or optional 3WD Series Parallel piston pump closed loop system. Foot pedal forward and reverse; infinitely variable.
Transport Width: Outside at Tires: 60" (152.4 cm) Outside at Reels: 69.7" (177 cm)
Weight: 1,087 lbs. (493 kg)
Wheelbase: 47" (119 cm)
Width of Cut: 59" (150 cm)
