Toro Greensmaster® eFlex 1021

Toro Greensmaster® eFlex 1021

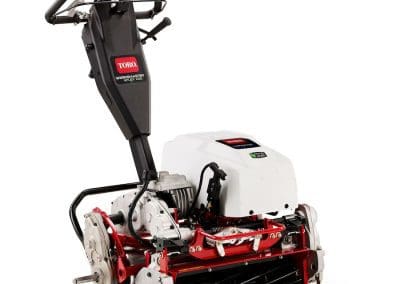

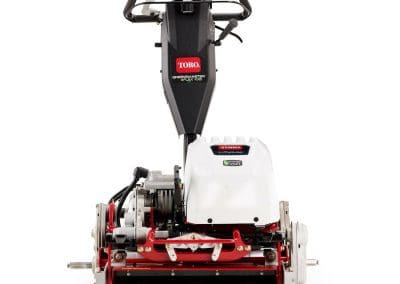

Extremely quiet, the all-electric Toro® Greensmaster eFlex1021 is among the quietest and most efficient walk greensmowers on the market today. Harnessing the power of lithium-ion battery technology, this mower take electrical efficiency to a new level, allowing operators to mow up to 44,000 sq. ft.* of turf on a single charge. Additionally, a convenient LCD screen indicates an ongoing battery charge status and also displays useful information such as machine hours, diagnostics, and overall battery health. This unit is designed for minimal maintenace and long, productive life saving labor and operational costs.

Quick Quote

Name(Required)

More Info

• Flex suspension allows the cutting unit to easily follow the contours of the green and delivers a superior quality of cut.
• Changing cutting units is simple with the tool-free quick-change levers. Easily swap out cutting units in seconds and minimize maintenance downtime.
• Battery capacity with ample power and run time to mow up to 44,000 sq-ft (over 4000 sq-meters). Balanced battery management and on-board electronics monitor the mower to automatically optimize battery life.
• All operator controls are within easy reach to perfect the mowing process, improve cut consistency, and enhance control – in normal and tight turn-around situations.
• Engineered to accommodate operators of different heights, for mowing in a natural upright position. Leads to less fatigue and a superior cut. Adjustable to 5 distinct handle positions.
• Two rubber grommets eliminate minor oscillations in Height-of-Cut caused by walking strides. Delivers a consistent cutting height on each and every green for optimal playability.
• Convenient, easy to reach location to engage reel from the operator position.
• Provides long life and best-in-class transmission durability. Lubricated for life, no grease points.
• A single bail combines safety and ease-of-operation. Convenient operation allows the mower to slow down or come to a full stop during turn-arounds without disengaging traction to line up for next mowing pass. Also ideal when using turn-around mats to preserve collar health.
• Clip frequency can easily be changed in the field to mow the perimeter, collars etc. The quick-change feature also can be locked out for added control.
• Disengage the traction with a simple lever twist. Getting around the shop has never been easier!
• Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.

Specification
Blade Style/Type: Reel
Blade Type (Description): EdgeSeries™ DPA radial reels.
Charger: Voltage and current controlled with CAN communication to manage battery health. Complies to max voltage and current limits directed by the battery management system. Off-board high efficiency 650W smart charger.
AC input voltage 100-240VAC
AC input Frequency 50/60 Hz
Max input Current 7.5 A
Max charge time, empty to full: 4 hrs.
Clip Frequency/Backlapping: Quick-change dual-speed gear drive, combined with positive drive belt - four possible reel speed/clip settings. Standard backlapping.
Collection System Volume: Molded polyethylene with integrated graphics highlighting overlap guidelines, vented for high-efficiency collection.
Controls: Start/On/Off (‘ignition’) switch, LCD Information Center (reports multiple parameters including hours, battery life, faults, diagnostics, backlap control, etc.) throttle, dual function traction/safety bail, reel engage lever, service/parking brake lever, optional light switch.
Cutting Unit Accessories: 11, 14-Blade Flex ES Cutting Unit, Front and Rear Roller Options, Bedknife Options, Groomer Options, Scraper Options, Tools and Maintenance Options.
Cutting Unit Suspension: Flex
Cutting Unit Type/Configuration: Semi-floating cutting unit separable from drive unit, pivoting around reel centerline (pitch axis) and pivoting around bedknife centerline side to side (roll axis).
Drivetrain: Electric
Fuel / Power Source: Electric
Ground Speed - Forward: 0 - 5.3 mph (0 - 8.5 km/h)
Handle: Loop handle with telescoping adjustment of 5" (12.7 cm) total travel, rubber isolated to minimize operator influence during mowing.
Height of Cut Range: For Greens: (Spacer Position One) 0.062" - 0.250" (1.5 mm - 6 mm) For Tees: (Spacer Position Two) 0.125" - 0.375" (3 mm - 9 mm) High Height of Cut Kit: 0.375" - 1.00" (9 mm - 25 mm)
Kickstand: Standard
Main Frame/Chassis: Fully modular design allows quick disassembly for service/maintenance of all major components.
Mowing Speed: 2.0 - 3.5 mph (3.2 - 5.6 km/h)
Number of Blades: 45610
Optional Accessories: LED Light Kit, Cutting Unit Light Kit Mount, Push Broom Kit, Wheel Kit, Backlap Access Kit, Wireless Hour Meter, High Height of Cut Kit, Charger, Replacement Battery
Parking/Service Brakes: Service/parking - band type.
Power Train (Engine Description): Lithium-Ion battery pack – nominal 51.4-Volt 29.4 A-Hr (1.51 kW-hr) with integrated battery management system utilizing CAN communication with the machine controller and charger. Single battery affixed to unit and charged onboard. Brushless permanent magnet DC motor with integral motor controller and helical gear reduction.
Reel Diameter: 5 in. (12.7cm)
Rollers: Front Roller: Optional – must be ordered. Rear Roller: Aluminum full roller 2" (5.1 cm) diameter with sealed bearings.
Starting: Key Start
Tires - Rear: Optional - Two quick-detachable pneumatic tires (3" x 3.25" - 6")
Traction Drive: Gear
Traction Drive (System): Permanent Magnet DC motor directly coupled to a fully gear-driven transmission with traction differential and traction disconnect to ease movement during service/maintenance operations. Interchangeable drum drive gear cases.
Traction Drum: Tapered traction drum for improved after cut appearance.
Weight: 292 lbs. (132.5 kg) with 11-blade cutting unit and aluminum Wiehle roller.
Width of Cut: 21" (53.3 cm)
Disclaimer: *Dependent on machine configuration, turf conditions, and battery age.
