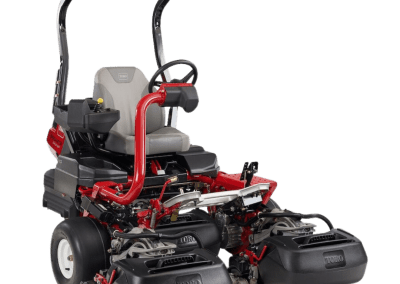

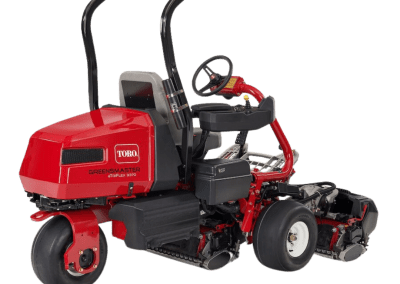

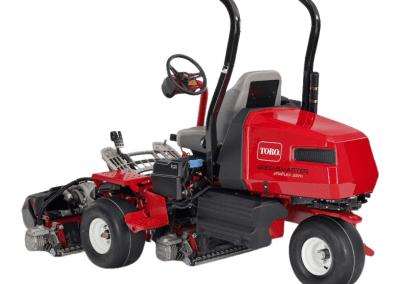

Toro Greensmaster® eTriFlex® 3360

Toro Greensmaster® eTriFlex® 3360

The Greensmaster® eTriFlex models carry no hydraulic fluid and utilize all-electric components for traction, steering, lift and cutting. These EnergySmart® models are operationally friendly with noticeable noise reductions, operational cost savings, and other meaningful improvements to complement the ever-important enhancements in cutting performance.
Combining the innovative, Double A-Arm Suspension System with industry-leading Flex technology, the cutting units float freely over any terrain. The new Radius Dependent Speed (RDS™) System, in combination with the Lift-In-Turn cutting unit leveling feature virtually eliminates the effect known as “Triplex-Ring”. This substantially improves both the aesthetics and playability of the green.
Superior cutting performance is only the beginning. The patented Lift-Gate Footrest, Tool-Free QuickChange™ cutting units, Automatic “Slow-in-Turn” during Transport and Auto-Brake on Operator Dismount are just a few of the many new features that provide added versatility, simplified service, and ultimately, more productivity.

Quick Quote

Name(Required)

More Info

• In addition to eliminating hydraulic leaks, each reel motor has a nominal 1.5 horsepower (1.1 kW). This translates into the power you need when you need it for unparalleled performance in your most challenging cutting applications.
• Redesigned clipping capture system maintains a consistent gap between the basket and reel to retain nearly all grass clippings for a cleaner and healthier cut. In addition, a discharge shield forces clippings inside of basket and minimizes "blow-by".
• Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.
• Tires have been redesigned to deliver uniform loading across the entire cross-section (load footprint area) to eliminate side wall loading that can create visible tire tracks.
• With traction, lift, steering, and reel drive all being electric, there are no hydraulic systems on the eTriFlex Series of mowers. Sleep easy knowing that leaks or even the risk of hydraulic leaks are a thing of the past.
• If the operator leaves the seat when the mower is running and fails to engage the parking brake, the system will sense it and automatically engage the parking brake to ensure the operator’s safety and avoid the machine rolling away.
• The 3370 & 3360 eTriFlex models run at an amazingly quiet noise level 66.5 & 73 dBA (respectively) which minimizes early morning disturbances and results in 50% lower perceived bystander noise level.
• Superior contour following capability utilizes an integrated "Flex" linkage system to allow cutting units to pivot around the center of the front roller to master undulations and prevent side-to-side scrubbing of the putting surface.
• Eliminates clip marks at the startup of a mowing pass and provides braking power to stop reels from spinning when cutting units are disengaged for safer operation.

Specifications
Armrests: Optional
Battery: 12V / 48V
Bedknife: Replaceable single edged, EdgeMax™ Microcut Bedknife is standard on all cutting units.
Bedknife Adjustment: Dual screw, indexed “click” adjustment to the reel; detents correspond to 0.0007" (0.018 mm) bedknife movement for each position.
Blade Style/Type: Reel
Blade Type (Description): Reels are 5" (13 cm) in diameter, 21" (53.3 cm) in length. EdgeSeries™ Reels blades are welded to 5 stamped steel spiders, and heat treated. The reel is ground for diameter and concentricity, and relief ground. The reel weldment shaft is a 1.375" (35 mm) diameter tube with internally splined threaded insert. Two stainless steel ball bearings (30 mm inside diameter) slip fit onto reel shaft retained by internally splined threaded insert. Low drag seals/slingers for added protection with o-ring sealed motor and counterweight. Reel position maintained by a wave washer with no adjusting nut.
Charger: Off-board high efficiency 1200W smart charger.
- AC input voltage 100-240VAC
- AC input Frequency 50/60 Hz
- Max input Current 14 A
- Max charge time, empty to full: 9 hrs.
Clip Frequency/Backlapping: Standard, on-board and adjustable speed from 200–520 RPM
Controls: Traction Pedal: Forward/Neutral/Reverse; Joystick: Raise/Lower; Function control switch: Neutral, Mow, Transport; Key switch; Steering Arm Lock Pedal; Brake pedal; Parking Brake; InfoCenter; Seat Adjusting Lever; Main Power Connectors
Cup Holder: Standard
Cutting Unit Accessories: 8, 11, 14-Blade Cutting Unit, Roller Options, Roller Scrapers / Brushes / Combs Options, Bedknife and Bedbar Options, Tools and Maintenance Options.
Cutting Unit Lift/Lower: 48V electric linear actuators with fully integrated brushless permanent magnet motor and controller. Fully sealed with splash guard. Center lift actuator drop and raise delay is dependent on machine velocity.
Cutting Unit Type/Configuration: Triplex, balanced cutting units with precision die-cast aluminum cross member with two bolt-on die-cast aluminum side plates. Cutting units feature quick disconnect for removal/installation and are interchangeable to all positions. Double A-Arm Suspension utilizing sealed ball joints allows free cutting unit motion in pitch and yaw. Links system for the roll. The basket is directly mounted to the cutting unit displacing weight evenly over front and rear rollers. (patented)
Drivetrain: Electric
Electrical System: 48V System for traction motor circuit, steering motor circuit, cutting unit motor circuit and lift / lower actuator circuit. 12V system for primary controls and brake actuator. Energy capacity: 10.77 kWh; 48V nominal.
Fuel / Power Source: Electric
Gauges/Instrumentation: InfoCenter™: Onboard LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics, low oil pressure, alternator, engine hours, engine rpm, voltage, functional control status, parking brake status, reel speed setting, backlap control, clip control, calibration of 48V components, advanced machine diagnostics.
Grass Distribution: Non-adjustable shield with adjustable cut-off bar to improve grass discharge from reel in wet conditions.
Ground Clearance: 3.8" (9.7 cm)
Ground Speed - Forward: 0 - 10 mph (0 - 16 km/h)
Ground Speed - Reverse: 0 - 5 mph (0 - 8 km/h)
Height: 80.8" (205 cm)
Height of Cut Range: Cutting height is adjusted on front roller by two vertical screws and held by two locking cap screws. Bench HOC range is 0.062" - 0.297" (1.6 - 7.5 mm). With high HOC kit, range is 0.297" - 1.0" (7.5 - 25.4 mm). Effective HOC may vary depending on turf conditions and bedknife installed.
Implement Drive: Three, 48V (1.1 KW), air-cooled brushless permanent magnet reel motors with separable controller.
Lighting: Optional
Main Frame/Chassis: Three tie-down locations (2 side, 1 rear).
Mowing Speed: 0 - 5 mph (0 - 8 km/h)
Number of Blades: 11, 14, 8
Optional Accessories: 3WD Kit, Light Kit, Light Kit - Front Mount Brackets, Rear Light Kit, Seat Kit (Standard or Premium), Left Armrest Kit (Standard), Armrest Kit (Premium), Canopy, Utility Bag Kit, Wireless Hour Meter, Seat Cover
Overall Width: 70.9" (180 cm)
Parking/Service Brakes: Traction motor regenerative braking; foot pedal service/parking brake, linear-actuated automatic parking brake.
Power Steering: Yes
Power Train (Engine Description) Eight Lithium-Ion batteries.
Product Length: 98" (249 cm) with baskets
RDS™ System: Radius Dependent Speeds – Clip Rate: Maintains consistent cutting unit clip rate in turns on each individual reel (patent-pending). Wheel Speed Control: Individual wheel speed control during turns (patent-pending). Lift-In-Turn: Provides level cut from side to side of cutting units regardless of turning angle (patented).
Reel Diameter: 5 in. (12.7cm)
Reel/Cylinder Drive: Electric
Rollers: Front: Not included with cutting unit, purchased separately. Option between full, narrow-spaced and wide-spaced Wiehle roller. Rear: Steel full, 2" (5.1 cm) diameter with sealed bearings and through-shaft.
Safety/Operator Safety: Sound Power: 82 db(A) At Operator's Ear: 66 db(A)
Starting: Key Start
Steering System Description: 48V electric steering motor with torque feedback device. Selective slow down feature for turning in mowing mode. Automatic slow down at high transport speeds when turning.
Tires - Front: 19" x 10.5" - 8", 4-ply, Smooth Tread
Tires - Rear: 19" x 10.5" - 8", 4-ply, Smooth Tread
Traction Drive: 2WD
Traction Drive (System): Positive 2WD traction drive: Two, brushless permanent magnet traction motors coupled to a gearbox. Optional 3WD. (patent-pending).
Turning Circle (Diameter): 69.8" (182 cm) clearance to cutting unit motor
Weight: Mow: 1274 lbs (578 kg) Transport: 1,557 lbs (706 kg)
Wheelbase: 49.8" (126.5 cm)
Width of Cut: 59" (150 cm)
