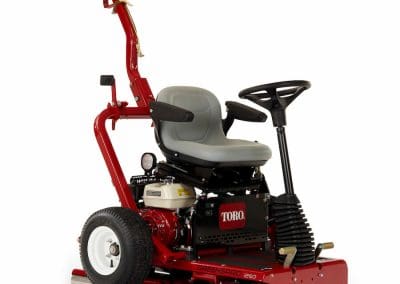

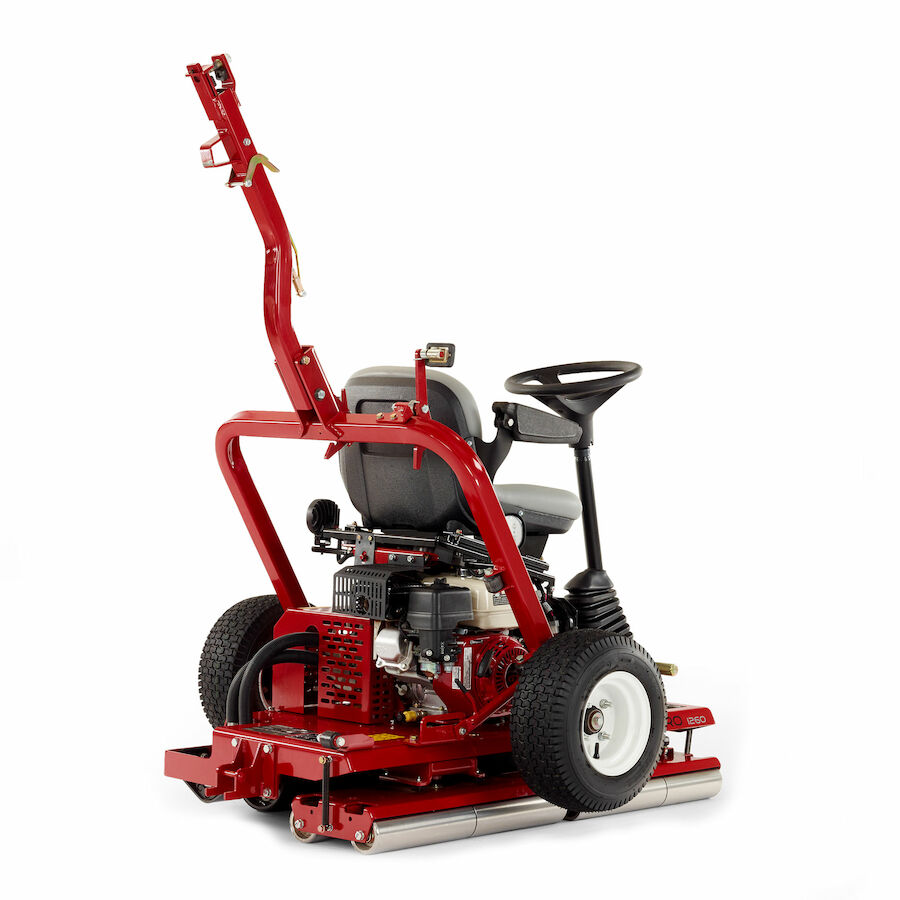

Toro GreensPro® 1260 Greens Roller

Toro GreensPro® 1260 Greens Roller

The GreensPro 1260 is the next evolution of greens roller. With enhanced features like the hydraulically driven drive roller the GreensPro 1260 reduces the maintenance required with the older chain drive systems. The GreensPro 1260 delivers exceptionally smooth and fast greens with a superior operator platform. The split overlapping, contour following smoothing rollers perfectly follow undulations delivering exceptionally smooth putting surfaces. The operator platform is fully adjustable for unmatched comfort and operator safety. The hitch system featuring a QuickLatch coupler makes transporting from green to green unbelievably quick and simple.

Quick Quote

Name(Required)

More Info

• Minimizes stress on the greens when turning.
• Provides full width roller coverage with no unrolled areas during every pass.
• Provides better smoothing head articulation with minimal maintenance.
• Increases reliability and removes high maintenance normally seen with a chain and sprocket design.
• Easy for the operator to attach roller to vehicle with one hand.
• Reduces stress on operators back and makes the machine easy to maneuver.
• Minimizes the time required to change engine oil.
• High-back seat is adjustable and steering wheel tilts up to 40 degrees to easily achieve best ergonomic position for the operator.
• Minimizes time required for maintenance.

Specification
Contour Follow: Yes
Controls: Tilt steering wheel, directional foot pedals, hand parking brake, engine stop switch, recoil, choke, fuel shut off, light switch, and hour meter.
Drive: Parker hydraulic motor to drive roller
Engine: Honda® GX200 5.5 hp (4.1 kW) @3600 RPM, air-cooled, 4-stroke OHV; mechanically governed.
Fuel: Unleaded gas
Ground Pressure: 3.75 PSI (0.26 Bar)
Ground Speed: Roll: 0 - 8 mph (0 - 12.8 km/h) in either direction
Height: Storage: 68" (173 cm) Towing: 47" (119 cm)
Hitch: Pin style hitch with single hand retractable retention method.
Length: Storage: 63" (160 cm) Towing: 93" (236 cm)
Rolling Width: 47.2" (120 cm)
Seat: High-back, adjustable with standard armrests

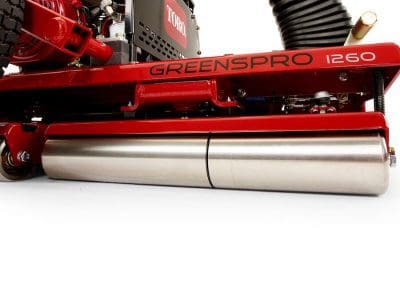

Smoothing Rolls: 3.44" (87.5 mm) diameter - 4 split rollers. Overlapping twin steering heads.
Steering: Wheel, adjustable column tilt of 40°
Traction Drive Roller: 7.24" (183.9 mm) diameter vulcanized grooved rubber coated cylinder, 31.5" (80 cm) long
Trailer: Integrated with QuickLatch towing system
Transmission: Hydrogear PG Pump
Transport Tires: 16 x 6.5 - 8 (15 PSI [1.03 Bar])
Weight: 679 lbs. (309 kg)
Width: 48" (122 cm)
