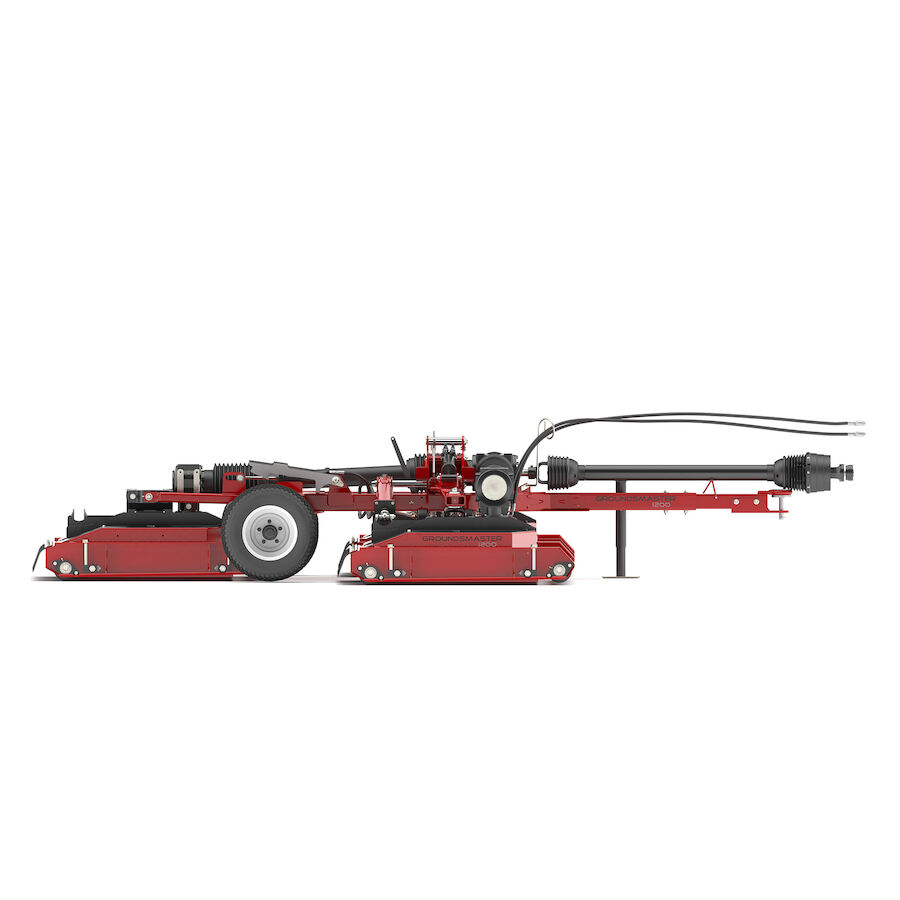

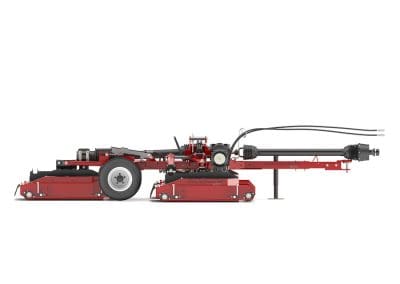

Toro Groundsmaster® 1200

Toro Groundsmaster® 1200

The Only Pull-Behind Worthy of Being a Groundsmaster.

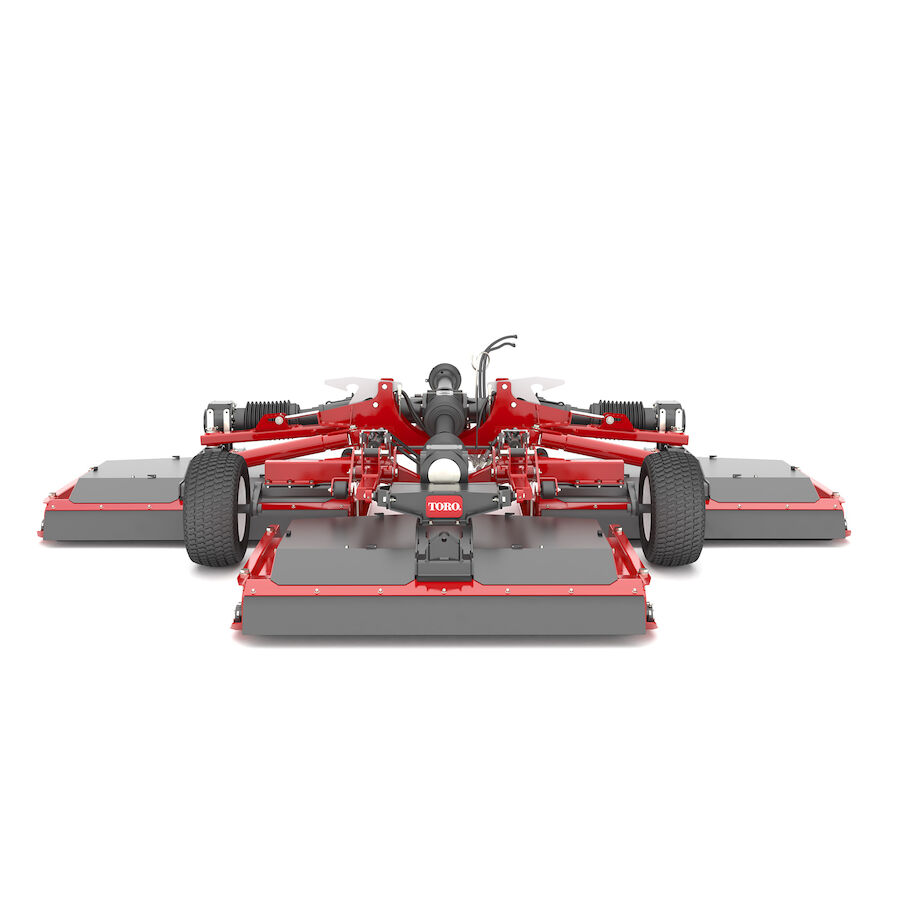

The Groundsmaster 1200 delivers an unparalleled combination of productivity, durability and superior cut. It features a 12-foot (3.7 meters) width of cut and can mow up to 8.73 acres/h (3.53 hectares/h) at 6 mph (9.7 km/h) per hour. Remaining true to Groundsmaster’s unmatched reputation of durability, the 1200 was designed for years of reliable mowing. Its spindles are the same as Toro’s large rotaries and capable of withstanding the roughest conditions. The bi-directional impact resistant system provides additional protection to the wing decks. Don’t let its productivity and robust design fool you; the Groundsmaster 1200’s independently articulating decks hug undulations for an exceptional finish. Combine this with the dual roller design, the Groundsmaster 1200 delivers a high-quality cut and rich turf striping in most conditions.

Productivity, durability and exceptional cut. That’s what makes the 1200 the only pull behind worthy of being a Groundsmaster.

Quick Quote

Name(Required)

More Info

• The Toro bi-directional impact absorption system was designed for an impact of 5 mph. The spring-loaded cylinder allows the deck to rotate upon impact, which absorbs the force and protects the mowing decks and main frame components from damage, enhancing productivity.
• Ductile cast iron spindle housing is large in diameter [9 in. (229 mm) at the base] to dissipate impact loads. Dual tapered roller bearings last up to six times longer than ball bearings.
• The deck gearboxes include an overrunning clutch that isolates the force from accidental blade impacts to keep the mower and tractor safe.

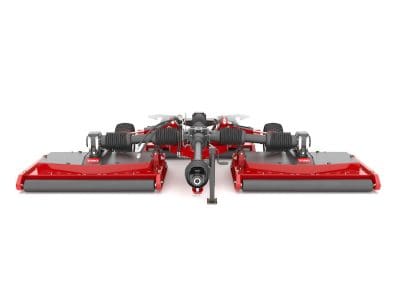

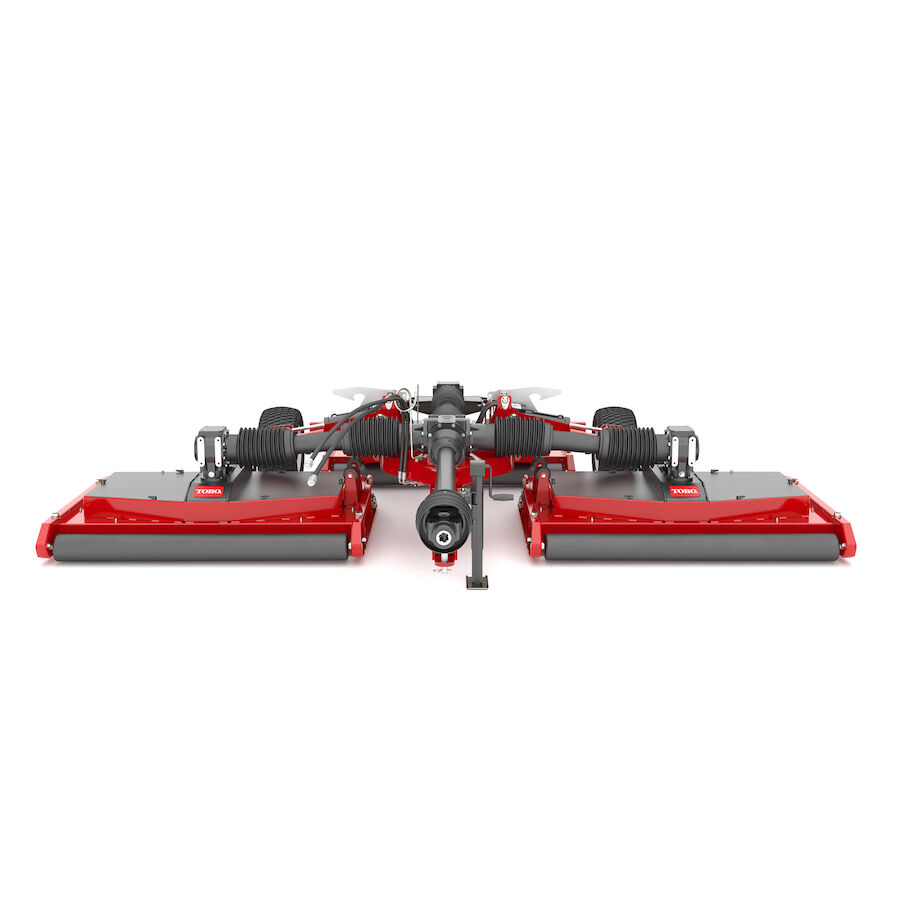

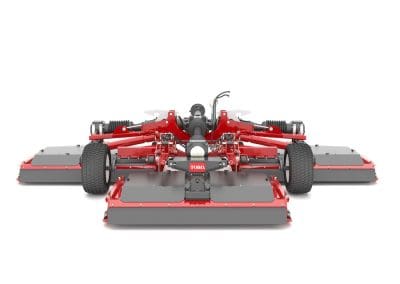

• The two full width rollers on the front and rear of each deck help deliver an exceptional quality of cut. The front rollers help reduce scalping in undulated terrain while the rear rollers delivers the exceptional turf striping.
• The Groundsmaster 1200 features a deck lift system allowing for the decks to be lifted from the turf while the PTO is engaged to quickly turn around without scuffing or transport over cart paths. This system helps keep the operator running at peak productivity.
• The Groundsmaster 1200 is not only a highly productive mower, it's also very versatile. Each deck features four mowing height adjustment points making it simple and quick to deliver the exact mowing height for superior conditions.

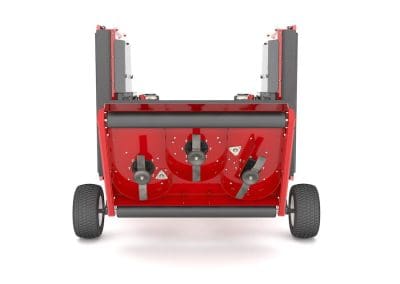

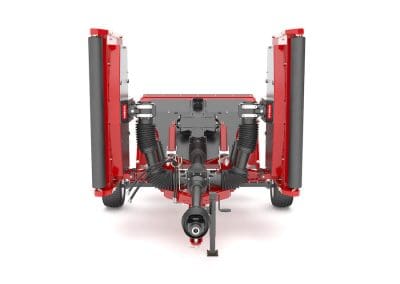

• The Groundsmaster 1200 wing decks fold up near vertical for a narrow 86" (218.4cm) transport width making it easy to get from site to site. Additionally, the transport wheels feature a torsion axle delivering a remarkably smooth ride making transport quick and comfortable.

Specifications
Blade Style/Type: Rotary
Blade Type (Description): Standard Blades: 19" (48.3 cm) long, 2.5" (6.4 cm) wide, 0.25" (6.4 mm) thick
Cab Unit: N/A
Clip Frequency/Backlapping: 15,000 ± 300 ft/min (4572 ± 91.4 m/min) at 540 PTO RPM
Cutting Unit Type/Configuration: Overall: 144" (365 cm), Individual deck: 54" (137 cm), Overlap: 9" (23 cm)
Deck Construction: 10-gauge high strength steel constructed deck with 7-gauge bolt-in reinforcements. 7-gauge welded steel side skids with 5" (12.7 cm) diameter steel rollers.
Deck Wing Protection: Bi-directional, impact absorption device on each wing deck
Drivetrain: PTO
Ground Following: 9 anti-scalp cups, one on each blade, two anti-scalp/striping rollers on each deck. On each deck: two 5" (12.7 cm) diameter roller.
Height: Transport height: 75.75" (192.4 cm)
Height of Cut Range: 0.5" - 4.0" (1.3 cm - 10.2 cm) infinitely variable
Mowing Rate (Productivity): Up to 8.7 acres/hr @ 6 mph
Number of Blades: 9
Optional Accessories: Roller scraper kit, standard blade kit, high-lift blade kit, safety chain kit, Atomic blade kit, tow chain kit, fender kit, SMV Kit, tail light kit, blade cover kit, clevis hitch, pintle eye hitch
Overall Width: 149.8" (380.5 cm) with decks down
Power Train (Engine Description): Minimum 35 HP (26.1 kW) at the PTO, 540 RPM
Product Length: Transport length: 145.5" (369.6 cm) (hitch fully extended)
Spindle Assembly: 1.25" (3.17 cm) diameter spindle shafts, 9" (22.9 cm) diameter conical ductile iron housing and two greaseable tapered roller bearings. Driven counter-clockwise when viewed from the top.
Tires - Front: 20" x 10" - 10", 6-ply, Tubeless Multi-Trac
Traction Drive: No Drive

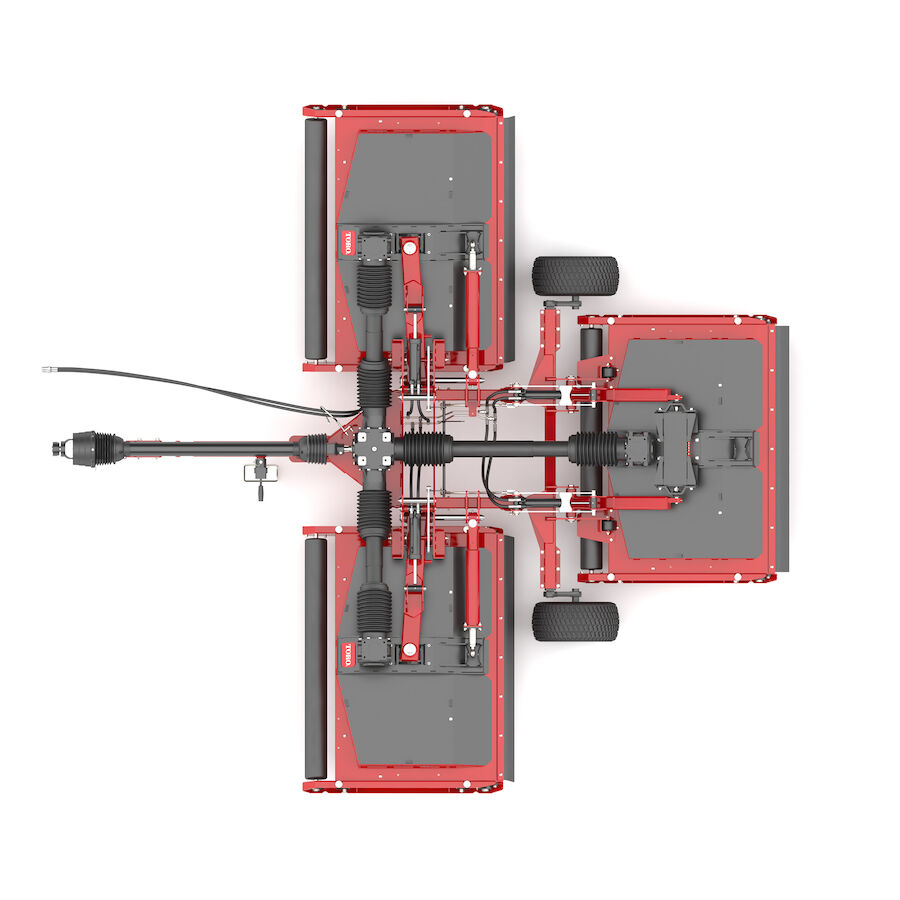

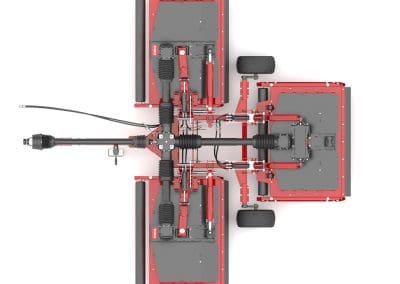

Traction Drive (System): PTO drive-shaft drives 4-way gearbox, secondary drive-shafts drive indiv. deck gearboxes
Transport Width: 86" (218.4 cm) at 0.5" (1.27 cm) HOC
Weight: 2,984 lbs. (1,354 kg)
Width of Cut: 144" (365 cm)
