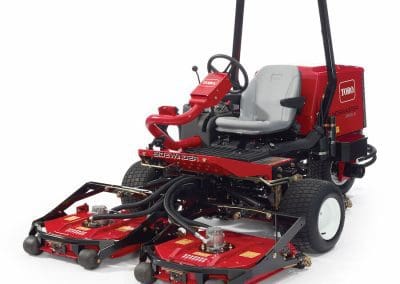

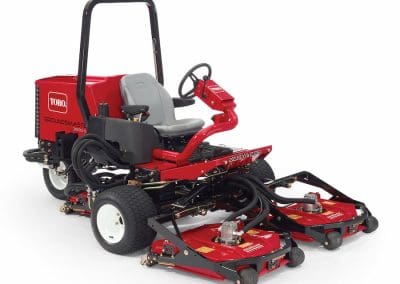

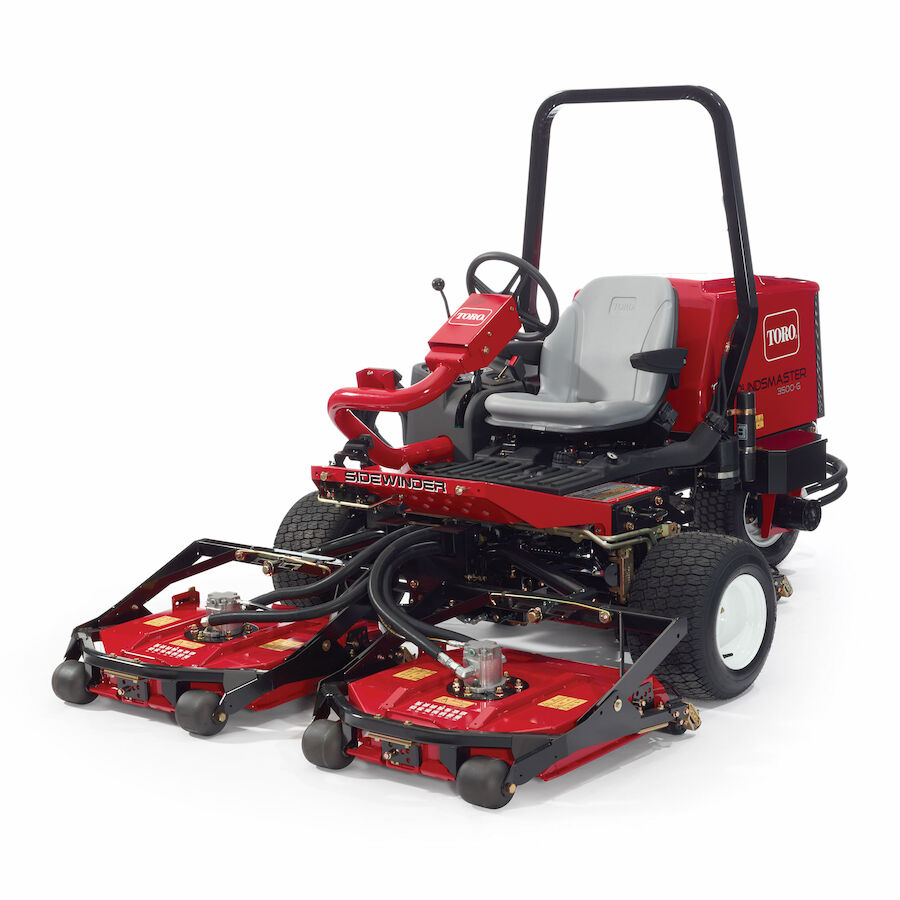

Toro Groundsmaster® 3500-D

Toro Groundsmaster® 3500-D

The Groundsmaster® 3500 Series is a revolutionary triplex rotary mower designed for superior performance trimming. The free-floating Contour™ Plus cutting decks allow mowing of undulating terrain without scalping. The powerful engine and exclusive traction drive system, gets the mowing job done quickly.

Quick Quote

Name(Required)

More Info

• The unique Toro Series/Parallel™ traction drive system provides steady traction in all conditions, even in wet grass and over undulating terrain. Its full-time, 3-wheel drive system maintains power to two of the three wheels at all times, minimizing tire spinouts and scuffing.
• Sidewinder cutting units shift left and right a total of 24 inches (61 cm). This allows the tire tracks to be shifted within the mowing path to reduce wear on the turf.
• The Contour™ Plus cutting technology takes quality of cut to a whole new level. Air inlet pockets keep the grass standing tall for the cleanest possible cut, while an acceleration baffle speeds clipping circulation and assures maximum power.
• The ground-following design of each Contour™ Plus free-floating deck permits mowing the most challenging berms without scalping. Two front rollers and a rear roller allow the deck to smoothly pass over turf.

Specifications
Air Filter: Remote-mounted 5" Donaldson® air cleaner
Armrests: Standard
Battery: 12V
Blade Style/Type: Rotary
Blade Type (Description): Combination Blades: 27" (68.6 cm) long, 2.5" (6.4 cm) wide, 0.25" (0.64 cm) thick
Cab Unit: N/A
Controls: Forward and reverse traction control pedals; mow/transport foot lever; hand activated parking brake; hand operated ignition key switch; tilt steering wheel lock; PTO switch; throttle; joystick control for deck raise and lower; cutting deck transport lock.
Cooling System Description: Rear-mounted, cross flow 4-row radiator
Cup Holder: Standard
Cutting Unit Accessories: Mulching Kit, Sectional Roller, Roller Scraper Kit
Cutting Unit Lift/Lower: Joystick control for deck raise and lower
Cutting Unit Type/Configuration: Three Contour™ Plus 27" (69 cm), rear-discharge rotary with standard full-length striping rear rollers on each deck. Sidewinder® system allows all three decks to slide right and left 12" (30 cm) of center, 24" (61 cm) total travel. 68" (173 cm), standard and 72" (183 cm) optional. Deck overhang for trimming is 12" (30.5 cm) @ 68" (173 cm) width of cut and 14" (35 cm) @ 72" (183 cm). Overlap: 6.5" (16.5 cm) at standard width of cut.
Deck Construction: 10-gauge steel constructed chambers with 12-gauge welded reinforcements. 1.5" (3.8 cm) square x 0.25" (0.6 cm) wall tube with 7-gauge side supports. Spindle support 3/16" (0.48 cm) high-strength steel and 10-gauge exterior channels.
Drivetrain: Diesel
Electrical System: 12-volt 585 CCA battery and 40 amp alternator
Engine Cooling: Liquid Cooled
Fuel / Power Source: Diesel / Biodiesel
Fuel Capacity: 11 U.S. gal. (41.6 L)
Fuel Filter: Fuel filter/water separator
Gauges/Instrumentation: Fuel gauge and hour meter. Light cluster with check engine and charge indicator lights. Low engine oil pressure and high coolant temperature warning lights (high temperature safety shut off).
Ground Clearance: 6" (15.3 cm)
Ground Following: 6" (15.3 cm) anti-scalp cups on each blade.
Ground Speed - Forward: 0 - 9 mph (0 - 14 km/h)
Ground Speed - Reverse: 0 - 4 mph (0 - 6.4 km/h)
Height: 76" (193 cm) with ROPS
Height of Cut Range: 0.75" - 4" (1.9 cm - 10.2 cm) in 0.25" (0.6 cm) increments. 3-position 0.030" (0.08 cm) incremental calibration
Hydraulic Cylinders: Open center, manual valves, gear pump hydraulic system
Hydraulic Fluid Capacity: 3.5 U.S. gal. (13.2 L)
Hydraulic Fluid Type: Toro PX™ Extended Life Hydraulic Fluid
Interlocks: Traction pedal, operator presence in seat, PTO engage or disengage, and cutting deck mow or transport safety interlock switches. Parking break set prohibits movement through traction pedal.
Lighting: Optional
Main Frame/Chassis: Formed steel, welded steel and steel tubing
Max Slope Angle: Refer to operator's manual.
Mowing Rate (Productivity): Up to 4.1 acres/hr (1.7 hectacres/hr)
Mowing Speed: 0 - 6 mph (0 - 10 km/h)
Number of Blades: 3
Oil Capacity: 6.5 U.S. qt. (6.2 L)
Oil Cooler Description: Single pass, aluminum side-by-side oil cooler/radiator, 6.3 fins per inch, serpentine fin profile, 6.5 quart (6.1 liter) capacity.
Optional Accessories: Bimini Canvas Sunshade, LED Work Lights, Universal Sunshade (White or Red)
Overall Width: 71.8” (182 cm) with standard 68” (173 cm) width of cut 75.8” (193 cm) with optional 72” (183 cm) width of cut
Parking/Service Brakes: Dynamic through hydrostatic transmission service brake. Hand actuated over center, drum type parking brake.
Power Steering: Yes
Power Train (Engine Description): Kubota® 3-cylinder, liquid-cooled diesel. Power: 24.8 hp (18.5 kW) gross, at rated speed of 3000 rpm. Torque peak: 71.5 (52.7) Nm (lbs-ft) @ 2200 rpm. Displacement: 1123cc. EPA Tier IV Final and Stage V Compliant.
Product Length: 116" (295 cm)
Rollers: Standard full-length striping rear rollers on each deck
Safety/Operator Safety: Two post ROPS, seat belt and slope indicator standard
Seat: Two-piece premium commercial two-tone grey vinyl with two armrests, fore/aft adjustment
Sidewinder: Yes
Spindle Assembly: Ductile cast iron spindle housing. Dual greaseable tapered roller bearings. 1.25" (3.2 cm) diameter solid cold finished steel spindle shaft. Splined connection between spindle shaft and deck motor. Welded blade retainer plus anti-scalp cups.
Starting: Key Start
Steering System Description: Hydraulic power steering, tilt wheel
Tires - Front: 20" x 12" - 10", 4-ply, Turf Tread
Tires - Rear: 20" x 10" - 10", 4-ply, Turf Tread
Tool Box: Standard
Traction Drive: 3WD
Traction Drive (System): 3-wheel drive in mow and transport. Series/Parallel hydrostatic, closed-loop transmission provides infinitely variable ground speed in forward and reverse. Variable displacement piston type pump.
Transport Width: 72.5" (184 cm)
Weight: 2,110 lbs. (957 kg) with cutting units
Wheelbase: 59.5" (151 cm)
Width of Cut: 68" (173 cm)

Additional information

Fuel/Power Source

Width of Cut

Series:

The Groundsmaster® 3500 Series is a revolutionary triplex rotary mower designed for superior performance trimming. The free-floating Contour™ Plus cutting decks allow mowing of undulating terrain without scalping. The powerful engine and exclusive traction drive system, gets the mowing job done quickly.
