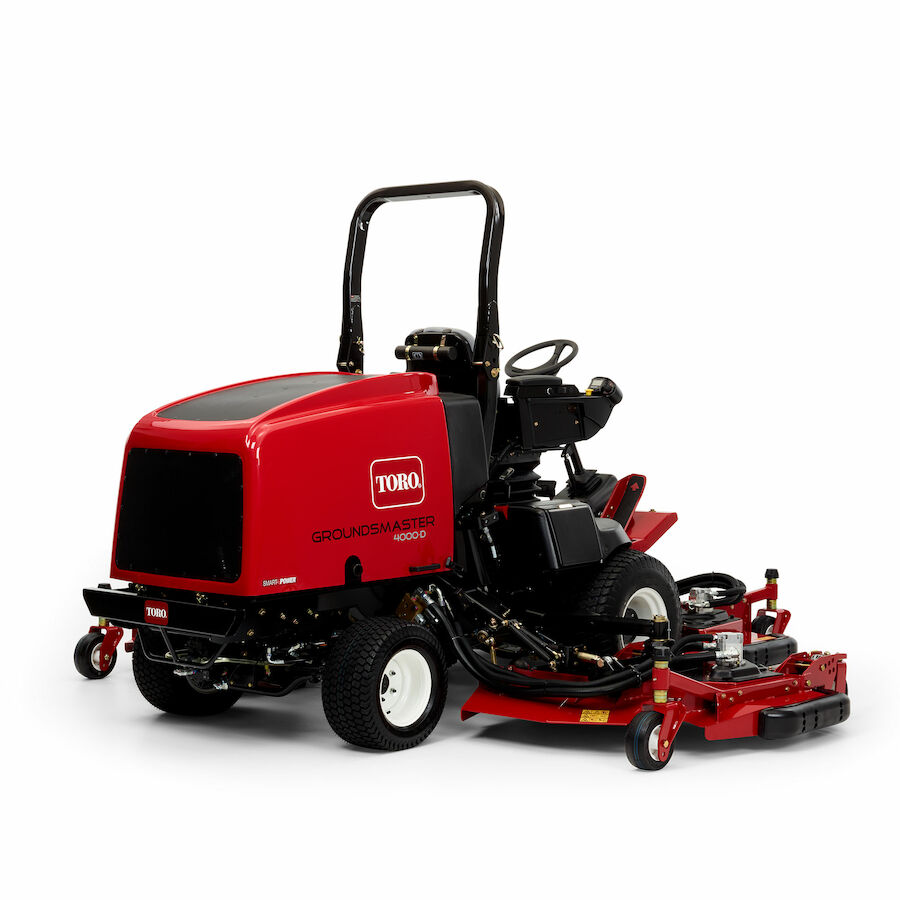

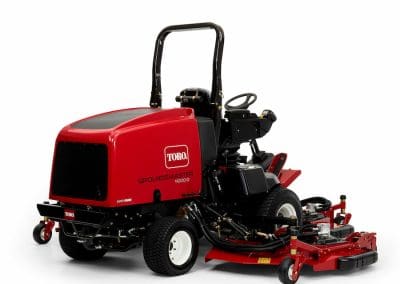

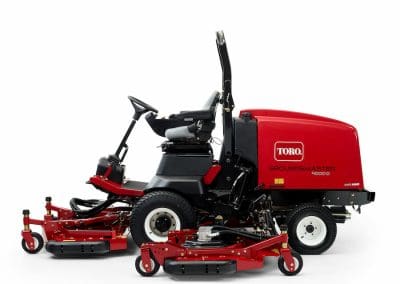

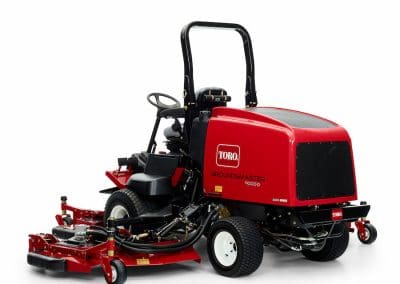

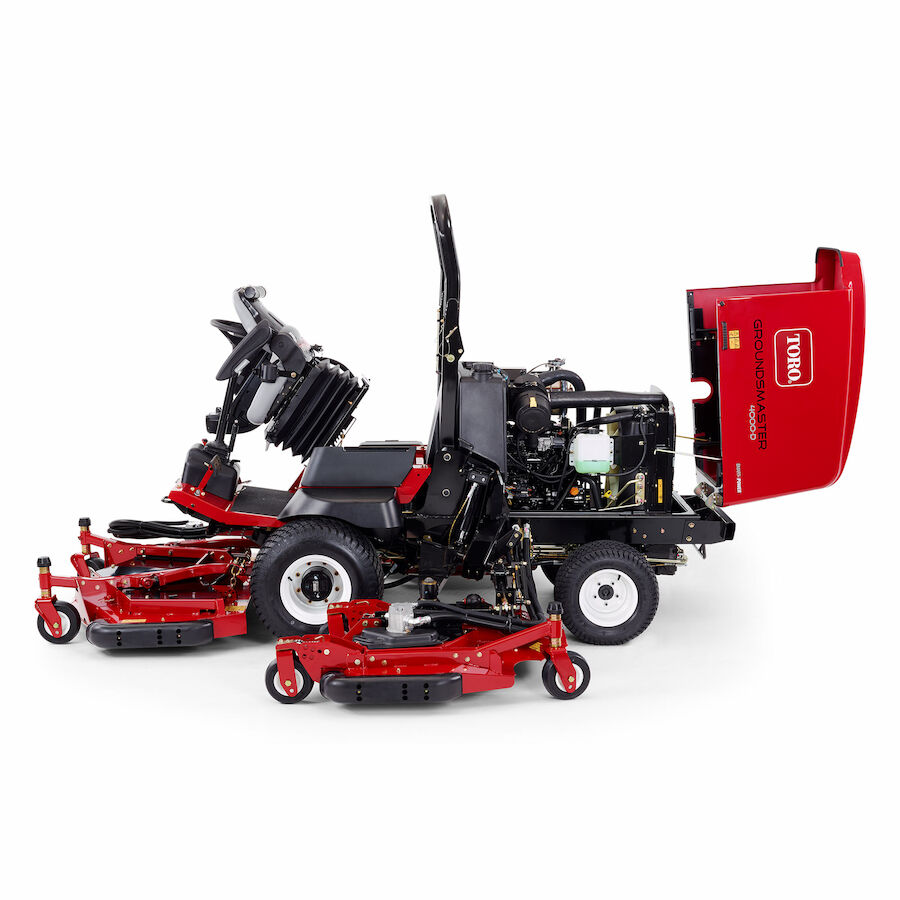

Toro Groundsmaster® 4000-D

Toro Groundsmaster® 4000-D

The Groundsmaster® 4000-D rotary mower boasts a powerful turbo-charged 55 hp (41 kW), Tier 4 Final and Stage V compliant diesel engine. Featuring Smart Power™ technology, high engine torque and patented, HybridDrive™ cutting deck system, the Groundsmaster 4000-D delivers power where you need it most, no matter how tough the conditions. With its excellent trimming capability and an ability to mow a 0” uncut circle, the Groundsmaster 4000-D is an extremely efficient mower.
The parallel hydraulic traction system maintains consistent hydraulic flow between the front and rear wheels to assure full time 4-wheel drive. This allows you to mow with confidence, even on hills and wet grass. Operators can enjoy the open air with ROPS safety in the Groundsmaster 4000-D.

Quick Quote

Name(Required)

More Info

• The impressive trimming capability means you can get around even the smallest object. The rare ability to mow a 0" uncut circle - without wheel brakes - allows you to easily mow striping patterns without leaving any grass uncut.
• Smart Power Traction allows even an inexperienced operator to achieve a consistent cut, even on hills and thick patches. By automatically adjusting ground speed when encountering heavy cutting conditions, optimum blade speed is maintained.
• Variable speed, temperature actuated reversing fan. Blows chaff off intake screen to help reduce overheating. Big time saver which reduces the amount of times an operator has to stop and exit the unit to clean the back hood.
• In addition to effectively mowing a 62" to 11' (157.5 cm to 3.4 m) swath with its fast wing lifts, the Groundsmaster® 4000-D/4010-D allows you to trim how you want with one, two, or all three decks engaged, depending on the situation.
• Heavy-duty welded steel decks and frames provide extra durability and long life. Each wing deck features a bi-directional, impact absorption system. If a deck hits an object, a spring-loaded cylinder allows the deck to flex on impact, protecting deck components so you have less down time and more productivity.
• Lets you set traction unit for a continuous operating speed with automatic override when operator moves drive pedal or operates brakes.
• The parallel hydraulic flow between front and rear wheels assures full-time 4-wheel drive. And the individual wheel brakes provide effective traction assistance on wet turf.
• Accessories for added value and versatility: rotary broom, 2-stage snowthrower, debris blower, and road package kit.

Specifications
Air Filter: Dry, replaceable primary and safety elements
Armrests: Standard
Battery: 12V
Blade Style/Type: Rotary
Blade Type (Description): Standard Blades: 21.75" (55.2 cm) long, 2.5" (6.4 cm) wide, 0.25" (0.64 cm) thick
Cab Unit: N/A
Controls: Tilt steering, ignition switch, throttle switch, foot-operated traction pedal, lockable individual brake pedals, parking brake lock, mow/transport speed selector switch, 3 two-position switches for individual deck lift/lower, counterbalance adjustment, tow valves, cup holder, toolbox, radio holder, fan switch and 12-volt power outlet.
Cooling System Description: Single pass cooler, 6.3 fins per inch, Smart Cool™ variable speed radiator cooling fan with automatic (based on coolant and oil temps) and manual reversing capabilities. Rear-mount, cross-flow radiator with 6.3 fins per inch, 9 quart (8.5 liter) capacity.
Cruise Control: Cruise control standard
Cup Holder: Standard
Cutting Unit Accessories: Recycler Kit, Mulching Kit, 8 Inch Foam Filled Caster Wheel, Bumper Skid (White)
Cutting Unit Lift/Lower: Two position switches for individual deck lift/lower
Cutting Unit Type/Configuration: Overall: 132" (335 cm), Front: 62" (157.5 cm), Wings: 42" (106.7 cm), Overlap: 7" (12.8 cm)
Deck Caster Wheels: 8 x 3.50-4, 4-ply, smooth, pneumatic, sealed precision ball bearings
Deck Construction: Welded 0.100" (25 mm) steel with 7 and 10-gauge steel channel and plate reinforcements, bullnose bumpers
Deck Wing Protection: Bi-directional, impact absorption device on each wing deck
Drivetrain: Diesel
Electrical System: 12-volt, 690 CCA battery, 80 amp alternator. Overload protection with automotive type fuses.
Engine Cooling: Liquid Cooled
Fuel / Power Source: Diesel / Biodiesel
Fuel Capacity: 21 U.S. gal. (79.5 L)
Gauges/Instrumentation: InfoCenter™: LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics. Indicates fuel level, coolant temp, intake temperature, low oil pressure, alternator, engine hours, engine rpm, hydraulic oil temperature, voltage
Ground Clearance: 6.5" (16.5 cm)
Ground Following: 6" anti-scalp cups on each blade, adjustable skids on each deck, 4 anti-scalp rollers on front deck and 1 on each wing
Ground Speed - Forward: 0 - 16.2 mph (0 - 26.1 km/h)
Ground Speed - Reverse: 0 - 8.1 mph (0 - 13 km/h)
Height: 85" (216 cm) with ROPS up 93.9" (237 cm) with cab
Height of Cut Range: 1" - 5" (25 mm - 127 mm) in 0.5" (13 mm) increments
Hydraulic Fluid Capacity: 8.75 U.S. gal. (33.1 L)
Hydraulic Fluid Type: Toro PX™ Extended Life Hydraulic Fluid
Implement Drive: Direct mounted hydraulic motor into spindle. Remaining spindle(s) driven by individual B section Kevlar belt. Quick release belt covers.
Interlocks: Prevents engine from starting unless traction pedal is in neutral and deck is disengaged. If operator leaves seat while moving or deck is engaged, traction and/or deck stops. Mowing only permitted in low range. Traction not allowed if parking brake engaged and pedal moved out of neutral. Deck transport latches.
Lighting: Optional
Main Frame/Chassis: All welded formed-steel frame with integral tie-down anchors.
Max Slope Angle: Refer to operator's manual.
Mowing Rate (Productivity): Up to 11.1 acres/hr (4.5 hectacres/hr)
Mowing Speed: 0 - 8.3 mph (0 - 13.4 km/h)
Number of Blades: 7
Oil Capacity: 8 U.S. qt. (7.6 L)
Optional Accessories: Road Light Kit, LED Work Lights, Additional Turn Signals, Sunshade, Beacon, Slope Sensor, Two-Post ROPS Extension System, Operator Golf Ball Guard, Horn Kit, 4WD Flow Divider Kit
Overall Width: 136" (346 cm) with decks down
Parking/Service Brakes: Mechanically actuated, internal wet disc brakes on input to each planetary drive. Individual foot-operated steering brake control left and right wheel. Lock pedals together & latch to engage parking brake.
Power Steering: Yes
Power Train (Engine Description): Yanmar® 4-cylinder, liquid-cooled, turbo-charged diesel. 127 cu. in. (2.1 liter) displacement. Engine rated at 55 hp (41 kW) net and 125 ft.-lbs. (169 Nm) torque at 2,000 rpm. EPA Tier IV Final and Stage V compliant.
Product Length: 135" (343 cm) with decks down.
Safety/Operator Safety: Two-post foldable ROPS with seat belt, standard
Seat: 4-way adjustable seat, right armrest travels with seat and suspension
Spindle Assembly: 1.25" (3.17 cm) diameter spindle shafts, 9" (22.9 cm) diameter conical ductile iron housing, and 2 greaseable tapered roller bearings
Starting: Key Start
Steering System Description: Power steering with dedicated power source. Steering wheel tilts to desired operator position.
Tires - Front: 26" x 12" - 12", 6-ply, Tubeless Multi-Trac
Tires - Rear: 20" x 10" - 10", 6-ply, Tubeless Multi-Trac
Tool Box: Standard
Traction Drive: 4WD
Traction Drive (System): Parallel hydrostatic, closed loop system with full-time 4WD. Forward/reverse in low (mow) and high (transport) range with full-time, automatic traction assist (forward only).
Transport Width: 71" (180 cm) @ 2" (5 cm) HOC
Turning Circle (Diameter): Uncut circle: 0" diameter
Weight: 4205 lbs. (1907 kg) with full fluids
Wheelbase: 55.5" (140 cm)
Width of Cut: 132" (335 cm)
