Toro Groundsmaster® 4700

Toro Groundsmaster® 4700

The Groundsmaster® 4700-D continues to provide the clean quality of cut of a reel mower but with the maintenance ease of a rotary. At 150” width of cut, the free-floating Contour™ Plus Decks eliminate scalping, provide dramatic striping and deliver a picture perfect cut. Toro’s exclusive SmartCool™ system keeps your machine on the job and moving forward. Before things get too hot, SmartCool briefly reverses the cooling fan to blast chaff and debris from the intake screens. With a 55 hp (41 kW) Tier 4 Final and Stage V compliant turbo-diesel and the new Smart Power™ technology, that maximizes power to the cutting blades, the Groundsmaster 4700-D is an unprecedented blend of powerful productivity and refined results.

Quick Quote

Name(Required)

More Info

• Proven rugged frame, drivetrain, and components ensure durability and long life. Heavy-duty welded steel decks and frames provide extra durability and long life.
• The Contour™ Plus cutting technology takes quality of cut to a whole new level. Air inlet pockets keep the grass standing tall for the cleanest possible cut and a modified rear discharge opening disperses clippings more evenly. An optional mulching kit and optional high height of cut blade are also available.
• Quick and easy access to all major service areas.
• A unique, parallel hydraulic traction system that assures full-time, bi-directional 4-wheel drive for dependable traction on hills and wet terrain without tire scuffing.
• The Groundsmaster® Contour Series mowers provide the productivity you need, no matter the size. Mow up to 10.6 acres (4.3 hectares) per hour to get the job done fast.
• Rear rollers provide an attractive striping effect while you mow, greatly enhancing the finished look of your turf.

Specifications
Air Filter: Dry, replaceable primary and safety elements.
Armrests: Standard
Battery: 12V
Blade Style/Type: Rotary
Blade Type (Description): 27" (68.6 cm) long, 2.5" (6.4 cm) wide, 0.25" (0.64 cm) thick combination blades.
Cab Unit: N/A

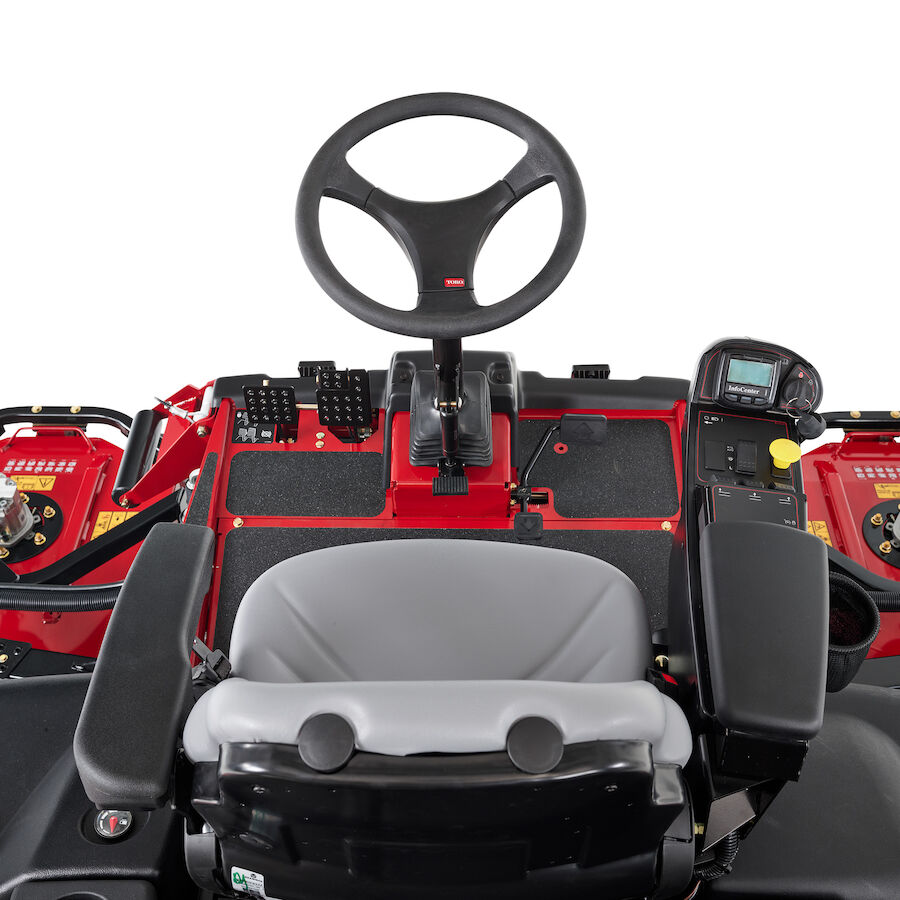

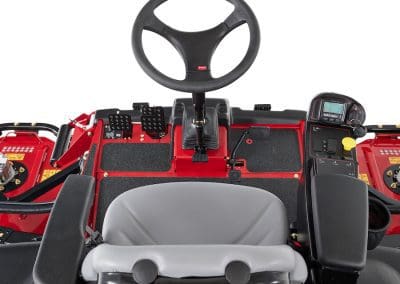

Controls: Ignition switch, low and auto mow/transport range selection switch, PTO switch, light switch. Foot-operated traction pedal, individual foot-operated steering brake control of left and right wheels with parking brake lock. One 2-position lift switch.
Cooling System Description: 8.25 gallon (31.3 liter) capacity with 10 micron remote spin-on filter, 9 row single pass cooler with tilt out for cleaning. Variable speed hydraulic fan drive with automatic (based on coolant and oil temps) and auto/manual reversing capabilities. Rear-mount, single pass, 7-row radiator with 6.3 fins per inch, 13 quart (12.3 liters) capacity.
Cruise Control: Standard off/on plus engage switch. Increase/decrease speed through InfoCenter, once engaged.
Cup Holder: Standard
Cutting Unit Accessories: Atomic Mulching Blades, High Sail/Angle Sail Blades, Rear Roller Scraper Kit, Mulching Kit, Deck Lock Kit, 27” Rotary Replacement Cutting Unit
Cutting Unit Lift/Lower: Three 2-position switches for deck raise/lower.
Cutting Unit Type/Configuration: Seven Contour™ Plus 27" (68.6 cm), rear-discharge rotary cutting units with standard full-length striping rear rollers. Operate-on-the-fly mowing configurations of 5, 6, or 7 decks utilizing the independently-operable outboard cutting units, resulting in cutting widths of 109" (276.8 cm), 129.5" (328.9 cm), or 150" (381 cm), overlap 6.5" (16.5 cm), overhang 30.9" (78.4 cm)
Deck Construction: 10-gauge steel constructed chambers with 12-gauge welded reinforcements. 1.5" (3.8 cm) square x 0.25" (0.6 cm) wall tube with 7-gauge side supports. Spindle support 3/16" (0.48 cm) high-strength steel and 10-gauge exterior channels.
Deck Wing Protection: Impact absorption device on each wing deck.
Drivetrain: Diesel
Electrical System: 12-volt, 650 CCA battery, 40 amp alternator. Overload protection with automotive type fuses.
Engine Cooling: Liquid Cooled
Fuel / Power Source: Diesel / Biodiesel
Fuel Capacity: 22 U.S. gal. (83.3 L)
Gauges/Instrumentation: InfoCenter™: Onboard LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics. Indicates fuel level, coolant temperature, intake temperature, low oil pressure, alternator, engine hours, engine rpm, hydraulic oil temperature, voltage and fuel usage.
Ground Clearance: 6" (15.3 cm)
Ground Following: 6" (15.3 cm) anti-scalp cups on each blade.
Ground Speed - Forward: 0 - 13 mph (0 - 21 km/h)
Ground Speed - Reverse: 0 - 8 mph (0 - 12.8 km/h)
Height: with 2-post ROPS: 88.8" (216 cm) upright, 65.2" (165 cm) folded
Height of Cut Range: 0.75" - 4" (1.9 cm - 10.2 cm) in 0.25" (0.6 cm) increments. 3-position 0.030" (0.08 cm) incremental calibration.
Hydraulic Cylinders: 10 micron remote spin-on filter, single pass cooler, 6.3 fins per inch. Variable speed hydraulic fan drive with automatic (based on coolant and oil temps) and auto/manual reversing capabilities.
Hydraulic Fluid Capacity: 8.25 U.S. gal. (31.2 L)
Hydraulic Fluid Type: Toro PX™ Extended Life Hydraulic Fluid
Interlocks: Prevents engine from starting unless traction pedal is in neutral and deck is disengaged. If operator leaves seat with deck engaged, engine stops. Machine automatically switches to low range if decks are lowered. Engine stops if parking brake engaged and traction pedal not in neutral. Prevents switching mow to transport unless stopped to protect turf.
Lighting: Standard
Main Frame/Chassis: All welded formed-steel frame with integral tie-down anchors.
Max Slope Angle: Refer to operator's manual.
Mowing Rate (Productivity): Up to 10.6 acres/hr (4.3 hectacres/hr)
Mowing Speed: 0 - 6.5 mph (0 - 10.4 km/h)
Number of Blades: 7
Oil Capacity: 6 U.S. qt. (5.7 L)
Optional Accessories: Heat-only Cab, White Sunshade, Red Sunshade, Operator Fan Kit, 4WD Flow Divider Kit, Two-post ROPS Extension System, Windscreen, 90-amp Alternator Kit, Road Light Kit, Rotating Beacon
Overall Width: 153.8" (391 cm) lowered, 88.3" (224 cm) raised
Parking/Service Brakes: Dynamic through hydrostatic transmission, plus mechanically-actuated, internal wet disc brakes on input to each planetary drive. Individual foot-operated steering brake control of left and right front wheel. Lock pedals together and latch to engage parking brake.
Power Steering: Yes
Power Train (Engine Description): Yanmar® 4-cylinder liquid-cooled, turbo-charged diesel. Power: 55 hp (41.1 kW) gross power at rated speed of 2700 rpm. Torque peak: 125 ft-lbs (169 Nm) @ 2000 rpm. Displacement: 127 cu. in. (2.1 liters). EPA Tier IV Final and Stage V Compliant.
Product Length: 145.8" (370 cm)
Rollers: Per deck: Two 5" (12.7 cm) diameter front rollers, one 3" (7.6 cm) diameter rear roller.
Safety/Operator Safety: 2-post foldable ROPS and seat belt standard.
Seat: Premium seat with adjustments for operator weight via air ride suspension, seat fore/aft position, seat back angle, arm rest height and retractable seat belt.
Spindle Assembly: Ductile cast iron spindle housing. Dual greaseable tapered roller bearings. 1.25" (3.2 cm) diameter solid cold finished steel spindle shaft. Splined connection between spindle shaft and deck motor. Welded blade retainer plus anti-scalp cups.
Starting: Key Start
Steering System Description: Power steering with dedicated power source, tilt steering.
Tires - Front: 29” x 14” - 15”, 6-ply
Tires - Rear: 20" x 10" - 10", 4-ply, Turf Tread
Tool Box: Standard
Traction Drive: 4WD
Traction Drive (System): Parallel hydrostatic, closed loop system with full-time 4WD forward/reverse in low (mow) and high (transport) range with optional full-time, momentary traction flow divider (forward only) (Model 31527). Variable displacement piston pump with electronic servo control powers dual speed piston motor drive into double reduction planetary in front, and mechanical axle in rear. Smart Power® feature controls traction speed to maintain optimal cutting blade speed.
Transport Width: Track Width (front): 88.3" (224 cm) Track Width (rear): 55.5" (141 cm)
Weight: 5,045 lbs. (2288 kg) with full fluids.
Wheelbase: 67.5" (172 cm)
Width of Cut: 150" (381 cm)
