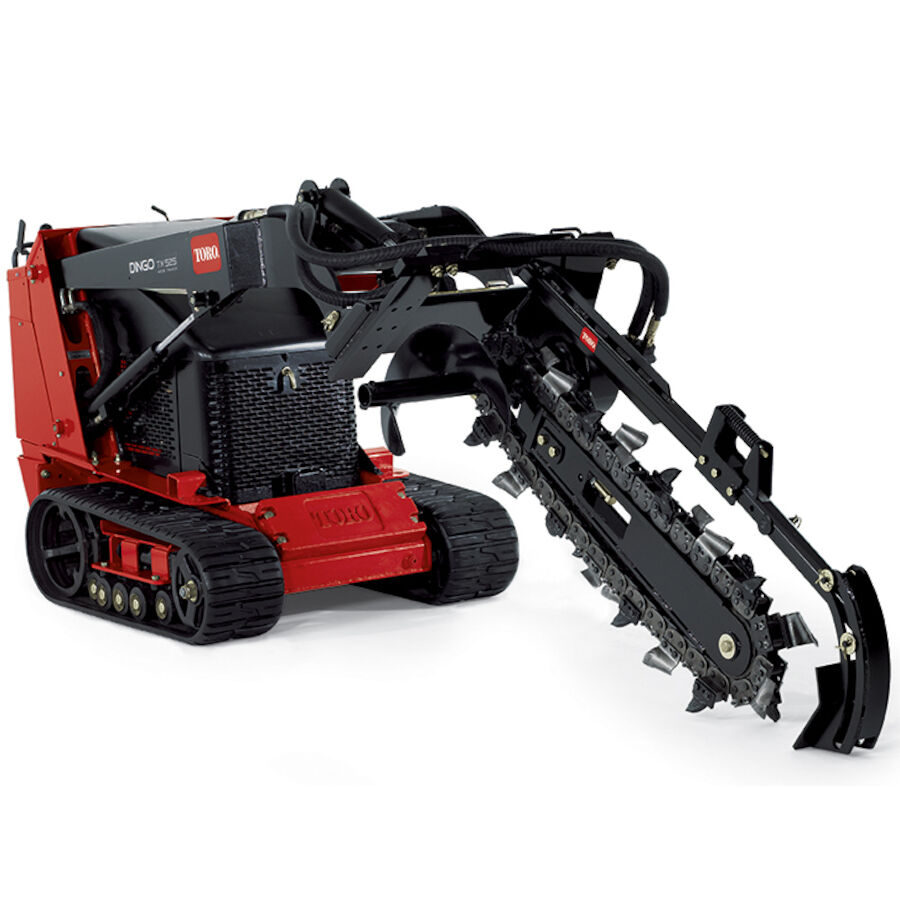

Toro High Torque Trencher Attachment

Toro High Torque Trencher Attachment

High-torque trencher head with heavy-duty drive system guarantees performance in the toughest soil conditions from rock to caliche. Dig trenches up to 50″ (127 cm) below grade. Heavy-duty nose roller bearing and reversible abrasion-resistant boom give you years of dependable use.

Quick Quote

Name(Required)

More Info

• 24" (61 cm), 36" (91.5 cm) or 48" (121.9 cm) booms available
• 4" (10.2 cm), 6" (15.2 cm), 8" (20.3 cm) or 12" (30.5 cm) chain widths available
• Heavy-duty nose roller bearing lasts longer providing less "shock" to the trencher assembly and chain

Specifications:
Auger Diameter: 12.5 in / 31.8 cm
Auger Speed: 120 rpm at 11 gpm (41.6 lpm)
Construction: Fabricated, welded steel frame
Height: 24 in / 61 cm
Length: 65 in / 165 cm
Mounting Frame: Dingo® quick-attach mount plate, fabricated, welded base
Quick Couplers: Dripless, flush face quick couplers
Torque: 675 ft/lbs (915.2 N)
Weight: 390 lbs / 177 kg
Width: 35 in / 88.9 cm

Additional information

Attachment Type

High-torque trencher head with heavy-duty drive system guarantees performance in the toughest soil conditions from rock to caliche. Dig trenches up to 50″ (127 cm) below grade. Heavy-duty nose roller bearing and reversible abrasion-resistant boom give you years of dependable use.
