Toro Multi Pro® 5800 Turf Sprayer

Toro Multi Pro® 5800 Turf Sprayer

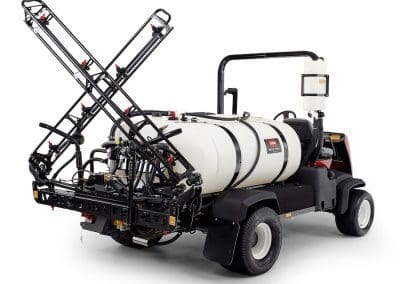

Multi Pro 5800 300-gallon dedicated sprayer
Leading sprayer technology, proven reliability and innovative accessories provide many performance and operational advancements. Every aspect of the spray system has been engineered to deliver unsurpassed spray accuracy, aggressive agitation and faster response time. Consistently delivers desired spray rates in even the most demanding environments.

Multi Pro 5800 with GeoLink® GPS Technology
This smart system knows your precise location. By automatically turning individual nozzles on and off, overlaps are virtually eliminated, resulting in substantial product savings.* You only need to map out your application area once, and the data will be saved for future applications.**

Quick Quote

Name(Required)

More Info

• An industry exclusive! This oversized pump satisfies the highest spray rates while simultaneously supplying aggressive agitation flow. The self-priming, positive displacement design means the pump can be run dry without damage. Its dry sump means there's no risk of oil/lubricant contaminating the spray application.
• Positions operational switches and throttle at the operator's fingertips for convenient access and control. With Quick Find™ controls, the operator can easily locate the buttons without taking their eyes off the spray path.
• Provides a high torque traction system that prevents spinning and turf damage. A speed locking device provides a constant spraying speed.
• Industry exclusive KZValve® electronically-activated ball valves are easily serviceable for long life and outstanding performance.

Specification
Agitator: Four side-mounted jet agitation nozzles for full tank agitation.
Boom Actuators: Heavy-duty hydraulic lift actuators with nitro-steel plated shafts; 1-3/4" (4.4 cm) Bore x 10.06” (25.6 cm) stroke.
Boom Assembly: 20.5' (6.25 m), 4 nozzles per selection, triangular truss-style open boom. 12 total triple-turret nozzle mounts with diaphragm check valves.
Brakes: 2-wheel mechanical cable operated multi disc wet brakes with additional hydrostatic braking through drive train.
Cooling System: Mid-mounted 3.3 U.S. qt. (3.1 L) radiator with oil cooler mounted in front.
Electrical System: 12-volt battery, 690 cold cranking amps at 0° F (-18° C). 12-volt, 60 Amp alternator. Dash mounted ignition switch.
Fuel System: 12 U.S. gal. (45.4 L) polyethylene/nylon low-permeation fuel tank with 1.5" (38 mm) opening on the passenger side for fueling; non-vented fuel cap with electronic fuel gauge on the console, in-tank fuel replacement filter, (unleaded gasoline), evaporative emission system with carbon cannister.
Gauges/Instrumentation: Ignition key switch; analog spray system pressure gauge; fuel gauge; battery voltage lamp; oil pressure warning lamp; coolant temperature warning lamp; InfoCenter™ display console.
GeoLink® Capable: Yes
Ground Clearance: 7.25" (18.4 cm)
Ground Speed: Forward: 0-10 mph (0-16.1 km/h) Reverse: 0-4 mph (0-6.4 km/h)
Height: 83.5" (212 cm) to top of ROPS
Length: 154" (391 cm) [with booms forward]
Lights: Rectangular 12-volt, 37.5 watt halogen sealed beam headlights.
Main Frame/Chassis: Welded high strength steel tubular construction.
Optional Accessories: CleanLoad™ eductor, fresh water rinse kit, electric hose reel, Pro Foam™ marking kit, Pro Foam™, Ultra Sonic Boom™ kit, covered boom kit, universal sunshade, hand spray wand kit, air induction turbo twin jet nozzles, contact & systemic nozzles, NozzAlert™, GeoLink® Precision Spray System
Overall Width: 88" (224 cm) [with booms forward]
Power Train (Engine Description): Kubota® WG1605, rated output: 50 hp (37.3 kW), 1.6 liter, 4-cylinder liquid-cooled gasoline engine with electronic fuel injection, throttle control, three-way catalytic converter, gear-driven valve train, and a diagnostic port.
Rated Capacity: 300 U.S. gal. (1,135.6 L)
Seat: Bucket seats with easy tilt forward bracket; removable bolts allow for adjustment for various seat positions; seats are interchangeable from left to right.
Solution Tank: Elliptical, high-density, impact-resistant polyethylene with large 16” (41 cm) fill opening.
Sound Level: 90 dB(A) at operator ear under normal operation
Spray Controls: Spray pump switch; tank agitation switch; individual boom section switches; master boom switch; manual/automatic spray mode switch; boom lift/lower switches; manual application rate control (pressure) switch; ExcelaRate™ automatic spray rate control (via InfoCenter).
Spray Pump: Hardi 364 / 10.0 6-diaphragm positive displacement; flow rate 45 gpm (170.3 lpm), 220 psi (1500 kpa) maximums.
Steering System Description: Fully hydraulic with dedicated power source, 48° steering angle.
Suspension: Front: straight axle with twin independent leaf springs and dual shock absorbers. Rear: rigid with high flotation rear tires.
Tires - Front: 22" x 12" - 12", 4-ply, No Tread
Tires - Rear: 26.5" x 14" - 12", 6-ply
Traction System: Hydrostatic system driving double planetary gear reduction rear wheel drives; foot pedal control of forward/reverse ground speed.
Turning Diameter: 15'-7" (4.7 m) front tire inside 26'-7" (8.1 m) front tire outside
Valve Actuators: 12 total triple-turret nozzle mounts with diaphragm check valves.
Vehicle Controls: Throttle control; spray pump switch; tank agitation switch; individual boom section switches; master boom switch; speed-lock switch; manual/automatic spray mode switch; boom lift/lower switches; manual application rate control (pressure) switch; USB port; 12V power socket; ExcelaRate™ automatic spray rate control (via InfoCenter).
Weight: Drive-on weight: 2,882 lbs. (1,307 kg), Shipping weight: 2,882 lbs. (1,307 kg), Empty vehicle: 2,882 lbs. (1,307 kg), Full w/ Operator: 5,692 lbs. (2,582 kg), MGVW: 6,692 lbs. (3,035 kg)
