Toro Multi Pro® WM Turf Sprayer

Toro Multi Pro® WM Turf Sprayer

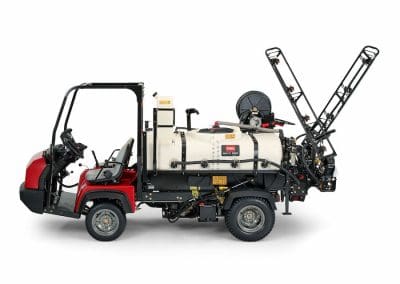

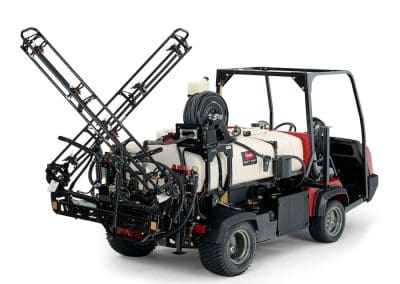

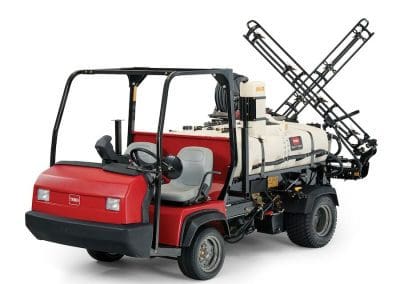

The Multi Pro WM spray system for Toro’s Workman® HD Series utility vehicles leverages the advanced spray system capability of Toro’s Multi Pro line and combines functionality with cutting-edge and intuitive sprayer controls. The result is the most advanced, efficient and accurate 200-gallon bed-mounted sprayer accessory for a utility vehicle on the market. Aggressive agitation, faster response times, consistent and accurate application rates, and intuitive rate set up, makes this the sprayer that has it all.

Quick Quote

Name(Required)

More Info

• An industry exclusive! This oversized pump satisfies the highest spray rates while simultaneously supplying aggressive agitation flow. The self-priming, positive displacement design means the pump can be run dry without damage. Its dry sump means there's no risk of oil/lubricant contaminating the spray application.
• Four, 30°, side-mounted agitation nozzles continuously 'roll' the tanks contents. Agitation nozzles are serviceable from outside of the spray tank.

Specification
Agitator: Four side-mounted jet agitation nozzles for full tank agitation.
Boom Actuators: Heavy Duty hydraulic lift actuators with nitro-steel plated shafts; 1-3/4" Bore x 10.06" Stroke. Add spray actuator specifics
Boom Assembly: 18.5' (5.6 m) three section, triangular truss style open booms. Optional 20.5' (6.25 m) booms available. Eleven nozzle turrets, triple turret-mount, quick-disconnect with diaphragm check valves. Twelve nozzle turrets with optional kit.
GeoLink® Capable: No
Optional Accessories: NozzAlert™, Pro Foam™marking kit, Pro Foam™, CleanLoad™ eductor kit, fresh water rinse kit, electric hose reel kit, Ultra Sonic Boom™ kit, covered boom kit, air induction turbo twin jet nozzles, contact & systemic nozzles
Rated Capacity: 200 U.S. gal. (757.1 L)
Solution Tank: High-density, impact-resistant polyethylene with large 16" (41 cm) fill opening, tapered bottom and sump with drain.

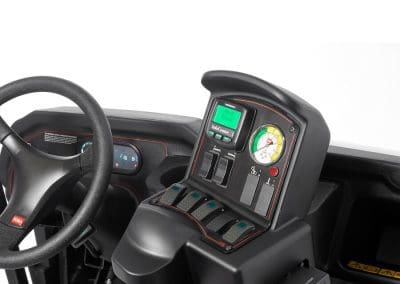

Spray Controls: Spray pump control switch, agitator jet switch, rate switch, individual boom On/Off switches, boom actuator switches, indicator lights on pump, agitation and boom switches, throttle lock.
Spray Pump: Hardi 364/10.0, 6-diaphragm positive displacement pump w/1" (2.5 cm) input shaft; input speed 0~540 rpm; Flow rate 45 gpm (170.3 lpm) @ 40 psi (540 rpm).
Valve Actuators: Eleven nozzle turrets, triple turret-mount, quick-disconnect with diaphragm check valves. Twelve nozzle turrets with optional kit.
