Toro Reelmaster® 3100-D

Toro Reelmaster® 3100-D

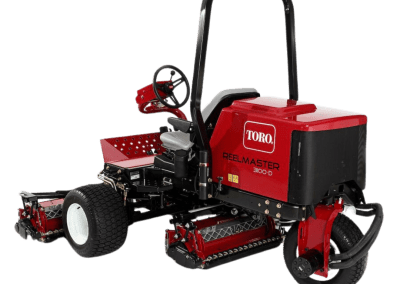

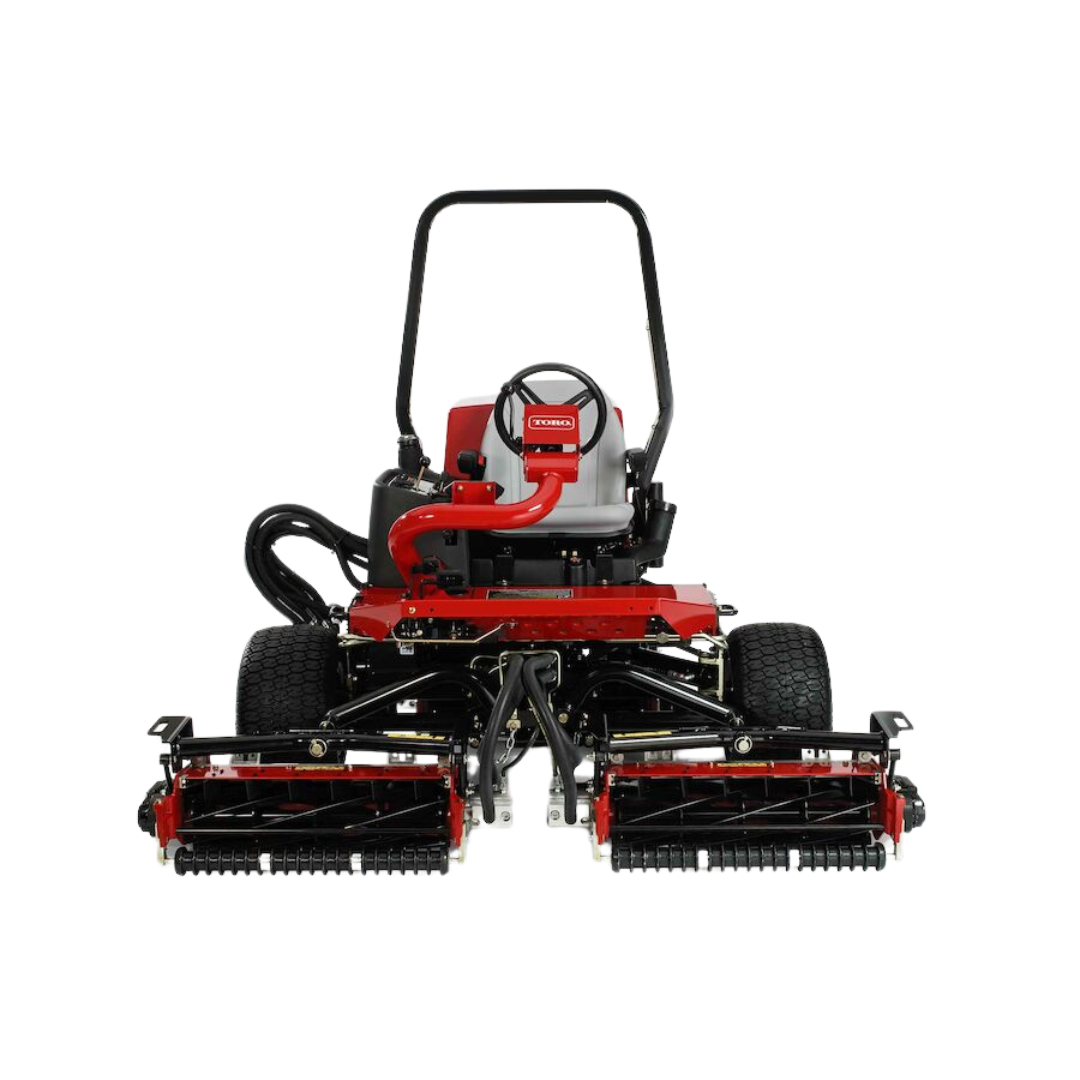

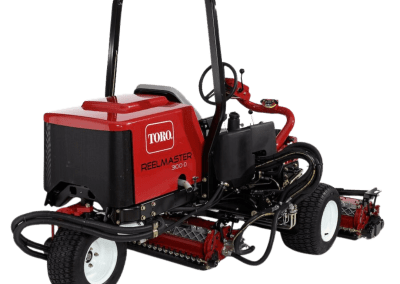

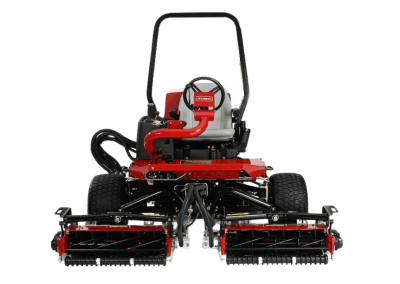

The Reelmaster® 3100 is a revolutionary triplex mower designed for superior traction and cutting unit performance on all types of turf. A powerful Kubota® 21.5 hp (16 kW) engine and the Series/Parallel 3WD traction drive system provide the power and traction to get the mowing job done quickly. The operator area is designed for optimal operator view and all day mowing comfort. And mechanics will appreciate the fast and easy access to all service items.

Quick Quote

Name(Required)

More Info

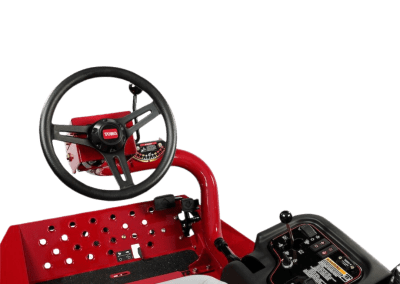

• The operator sits out-front on the Reelmaster® 3100-D for better mowing visibility and easier access getting on and off the machine. Engine noise, vibration, and exhaust are all located behind the operator.

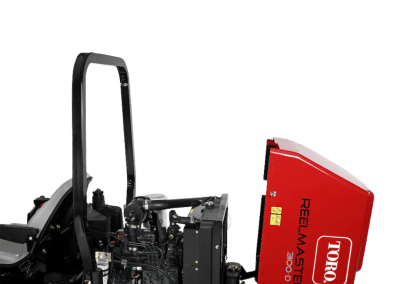

• With the engine located in the rear of the machine, the Reelmaster® 3100-D is easy to service. Open the engine compartment to have access to all filters, fluids and engine components for fast preventative maintenance.
• The Reelmaster® 3100-D is available in a 72" or 85" (183 cm or 216 cm) width of cut. With a choice of 5, 8, and 11 blade reels and adjustable reel speed control, this mower can be configured to meet all mowing applications.
• With a 21.5 hp (16 kw) Kubota® Diesel Engine, the Reelmaster® 3100-D has the power to climb and power to cut through difficult mowing conditions.
• There's no need to worry about mowing around objects while traversing hills, even in wet terrain. The parallel hydraulic flow between front and rear wheels assures full-time 3-wheel drive. And the individual wheel brakes provide effective traction assistance on wet turf.
• Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.

Specifications
Air Filter: Heavy-duty, radial seal air cleaner.
Armrests: Standard
Battery:12V
Bedknife Adjustment: Dual Precision Adjustment (DPA), bedknife to reel.
Blade Style/Type: Reel
Blade Type (Description): EdgeSeries™ DPA radial reels.
Cab Unit: N/A
Clip Frequency/Backlapping: Manually controlled, variable reel speed for control of clip frequency. Standard on-board backlapping.
Controls: Forward and reverse traction control pedals, mow/transport lever, hand activated park brake, ignition key switch, tilt steering wheel lock, PTO switch, throttle, joystick control for cutting unit raise and lower (and for moving cutting units side-to-side on Sidewinder equipped models), cutting unit transport lock, reel speed and backlap control knob.
Cooling System Description: Rear mounted radiator.
Cup Holder: Standard
Cutting Unit Accessories:Rear Roller Brush Kit, Universal Groomer, Broomer, Grass Baskets
Cutting Unit Lift/Lower: Hydraulic - front and rear cutting unit lift/lower are sequenced for uniform starting and ending points.
Cutting Unit Offset: 3" (7.6 cm) in 72" (183 cm) width of cut 10" (25 cm) in 85" (216 cm) width of cut
Cutting Unit Type/Configuration: Three hydraulically-driven, balanced, 7" (17.8 cm) diameter reels. Cutting units interchangeable to all three positions. Fixed position cutting units. 72" (183 cm), or 85" (216 cm) depending on cutting unit selection.
Drivetrain: Diesel
Electrical System: 12-volt, 585 cold cranking amps at 0 deg. F (-18 deg. C), 40 amps with regulator/rectifier.
Engine Cooling: Liquid Cooled
Fuel / Power Source: Diesel / Biodiesel
Fuel Capacity: 7.5 U.S. gal. (28.4 L)
Fuel Filter: Fuel Filter with fuel/water separator and visible bowl.
Gauges/Instrumentation: Hour meter, fuel gauge, cluster gauge with glow plug and charge indicator lights. Low engine oil pressure and high coolant temperature warning lights (high temperature safety shut off).
Ground Speed - Forward: 0 - 9 mph (0 - 14 km/h)
Ground Speed - Reverse: 0 - 4 mph (0 - 6.4 km/h)
Height: 76" (193 cm) with ROPS
Height of Cut Range: Floating Position (Standard)
8-Blade: 0.5" - 2.0" (13 mm - 51 mm)
11-Blade: 0.25" - 0.75" (6 mm - 19 mm)
Fixed Position
8-Blade: 1.25" - 2.0" (32 mm - 51 mm)
Hydraulic Fluid Capacity: 6 U.S. gal. (22.7 L)
Hydraulic Fluid Type: Toro PX™ Extended Life Hydraulic Fluid
IntelliDash™ Capable: No
Interlocks:Traction pedal, operator presence in seat, PTO engage or disengage, and cutting unit mow or transport safety interlock switches.
Lighting: Optional
Main Frame/Chassis: Formed steel, welded steel and steel tubing.
Max Slope Angle: Refer to operator's manual.
Mowing Speed: 0 - 6 mph (0 - 10 km/h)
Number of Blades: 11, 5, 8
Oil Capacity: 3.5 U.S. qt. (3.3 L)
Oil Cooler Description: Pressurized lubrication system.
Optional Accessories: Sunshade (with optional operator cooling fan, LED work lights, rotating amber beacon)
Parking/Service Brakes: Hydrostatic service brake, hand-operated parking brake.
Power Steering: Yes
Power Train (Engine Description): Kubota® liquid-cooled diesel, 3-cylinder, 21.5 hp (16 kW) net @ 2500 RPM. High idle: 2,600 rpm, Low idle: 1,400 rpm (+/- 50 rpm). 68.5 cu. in. (1123 cm) displacement. Tier 4 and Stage V compliant.
Product Length: 93" (248 cm)
Reel Diameter: 7 in. (17.8cm)
Reel/Cylinder Drive: Hydraulic
Rollers: Full roller standard on rear of cutting unit and plastic front Wiehle roller.
Safety/Operator Safety: 2-post ROPS and retractable seat belts standard.
Seat: Two-piece premium commercial two-tone grey vinyl with two arm rests, fore/aft adjustment.
Sidewinder: No
Starting: Switch
Steering System Description: Power steering with tilt steering wheel.
Tires - Front: 20" x 12" - 10", 4-ply, Turf Tread
Tires - Rear: 20" x 10" - 10", 4-ply, Turf Tread
Traction Drive: 3WD
Traction Drive (System): Series/Parallel hydraulic traction circuit provides continuous 3-wheel drive, in mow and transport. Hydrostatic traction drive provides infinitely variable speed in forward and reverse.
Transport Width: 80" (203 cm) in 72" (183 cm) WOC, 92" (234 cm) in 85" (216 cm) WOC
Weight: with 27-inch Cutting Units: approx. 1,860 lbs. (844 kg)
Wheelbase: 56" (142 cm)
Width of Cut: 72" (183 cm) or 85" (216 cm)
