Ventrac Reel Mower

Ventrac Reel Mower

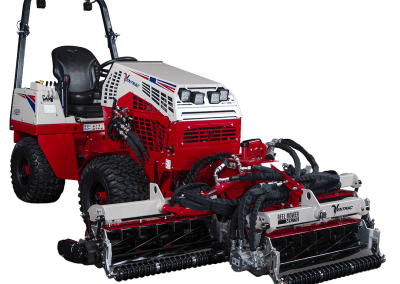

If reel mowing on steep slopes is a concern, the Ventrac MR770 trim and surrounds reel mower is the right choice. With a 77″ width of cut, variable speed hydraulics, standard back lapping valves, and optional roller brush kit, the Ventrac MR770 includes many features to ensure a superior finish.
Powered by the all-wheel drive Ventrac 4520 tractor equipped with dual wheels, this reel mower can be operated on hills and slopes up to 30 degrees. Go where no other reel mower can go, and leave a beautiful cut with the Ventrac MR770 reel mower.

Quick Quote

Name(Required)

More Info

Deck Type: Front Mount, Triplex Reels
Deck Suspension: Front Roller (grooved) • Rear Roller (smooth)
Width of Cut: 77 inches (196 cm)
Cutting Height Range: .375–2.5 inches (.95–6 mm)
Cutting Positions: Infinite
Cutting Height Adjustment: Multi-Point
Discharge Type: Front or Rear

Required Kits
4500: Spool Float Hyd. Valve
4520: 4 Pos Spool W/Detent

Reel Specifications
Reel Drive: Hydraulic
Reel Speed: Variable
Back-lapping: Standard
Cutting Units: 3
Reel Length: 27 inches (69 cm)
Reel Diameter: 7 inches (18 cm)
Reel Blades: 8
Adjustment: Bed Knife to Reel

Additional information

Weight 775 lbs
Dimensions 52 × 83.5 × 26 in
Attachment Type

Series:

If reel mowing on steep slopes is a concern, the Ventrac MR770 trim and surrounds reel mower is the right choice. With a 77″ width of cut, variable speed hydraulics, standard back lapping valves, and optional roller brush kit, the Ventrac MR770 includes many features to ensure a superior finish.
Powered by the all-wheel drive Ventrac 4520 tractor equipped with dual wheels, this reel mower can be operated on hills and slopes up to 30 degrees. Go where no other reel mower can go, and leave a beautiful cut with the Ventrac MR770 reel mower.
